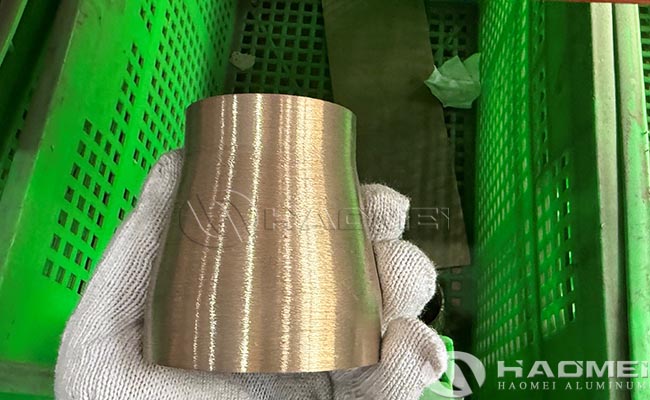

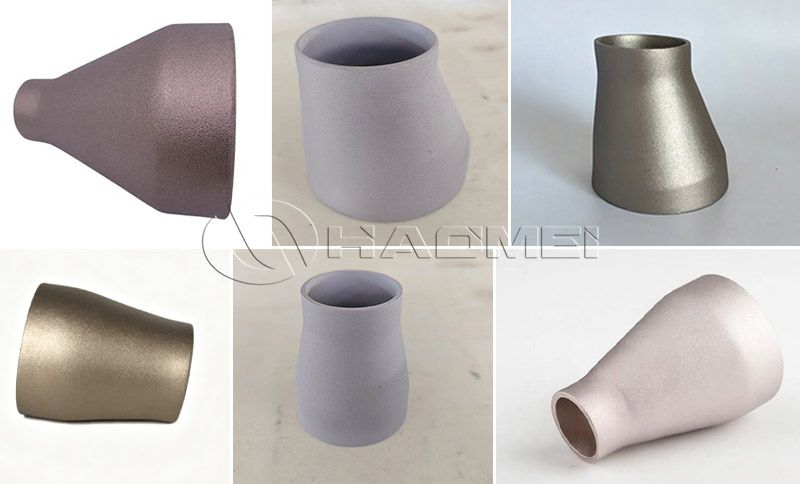

Copper Nickel Reducer is a copper nickel pipe fitting used to connect pipes of different diameters in marine and seawater piping systems.  It is used when two pipes with different diameters need to be connected in a marine or seawater pipeline. The reducer helps ensure smooth flow transition, proper pipeline layout and reliable system performance. It is commonly used to reduce or enlarge the pipeline size while maintaining reliable flow performance and corrosion resistance.

Due to excellent resistance to seawater corrosion, erosion corrosion and marine biofouling, good weldability and fabrication performance, copper nickel reducers are widely used in shipbuilding, offshore platforms, desalination plants, seawater cooling systems, fire water systems, ballast water systems and heat exchanger pipelines. In marine piping systems, copper nickel reducers are often installed together with copper nickel pipes, elbows, tees, flanges, stub ends and other fittings.

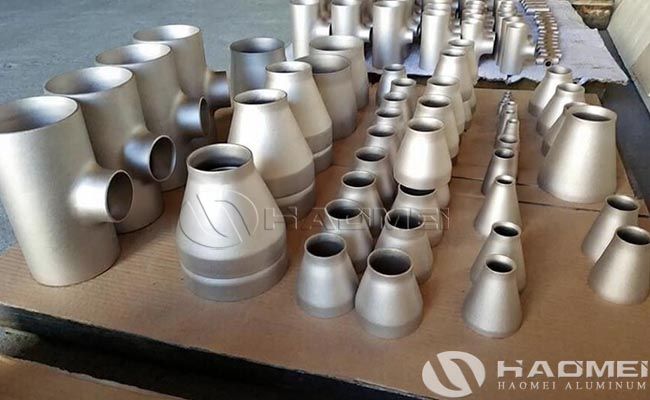

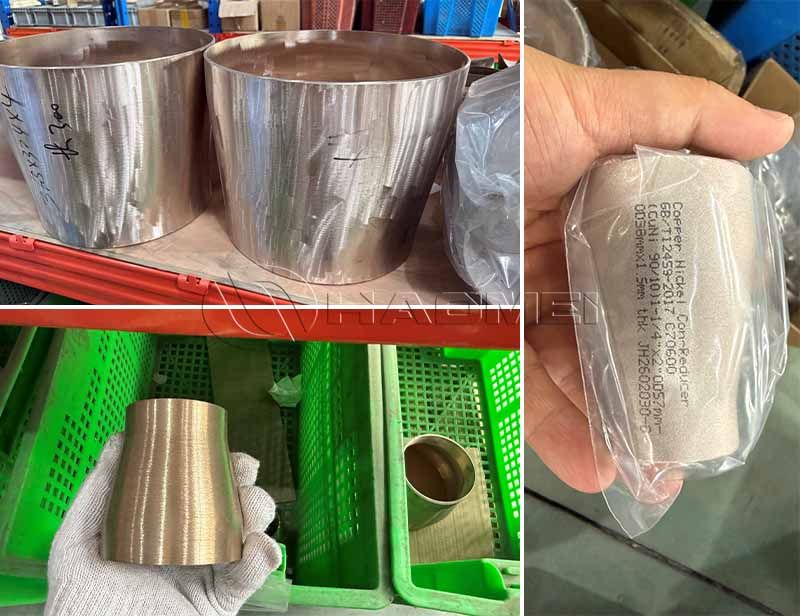

We supply copper nickel reducers in 90/10 copper nickel C70600 / CuNi10Fe1Mn and 70/30 copper nickel C71500 / CuNi30Mn1Fe materials. Available types include copper nickel concentric reducers, copper nickel eccentric reducers, butt weld reducers and custom fabricated reducers according to project drawings.

Available Types of Copper Nickel Reducer

Copper Nickel Reducer Material Grades

Standards for Copper Nickel Reducer

Copper nickel reducers can be supplied according to international standards, marine standards or customer project specifications.

Common standards include:

• ASME B16.9

• MSS SP-43

• ASTM B366

• DIN marine piping standards

• EN copper alloy piping standards

• EEMUA standards for copper nickel piping systems

• Customer drawings and project specifications

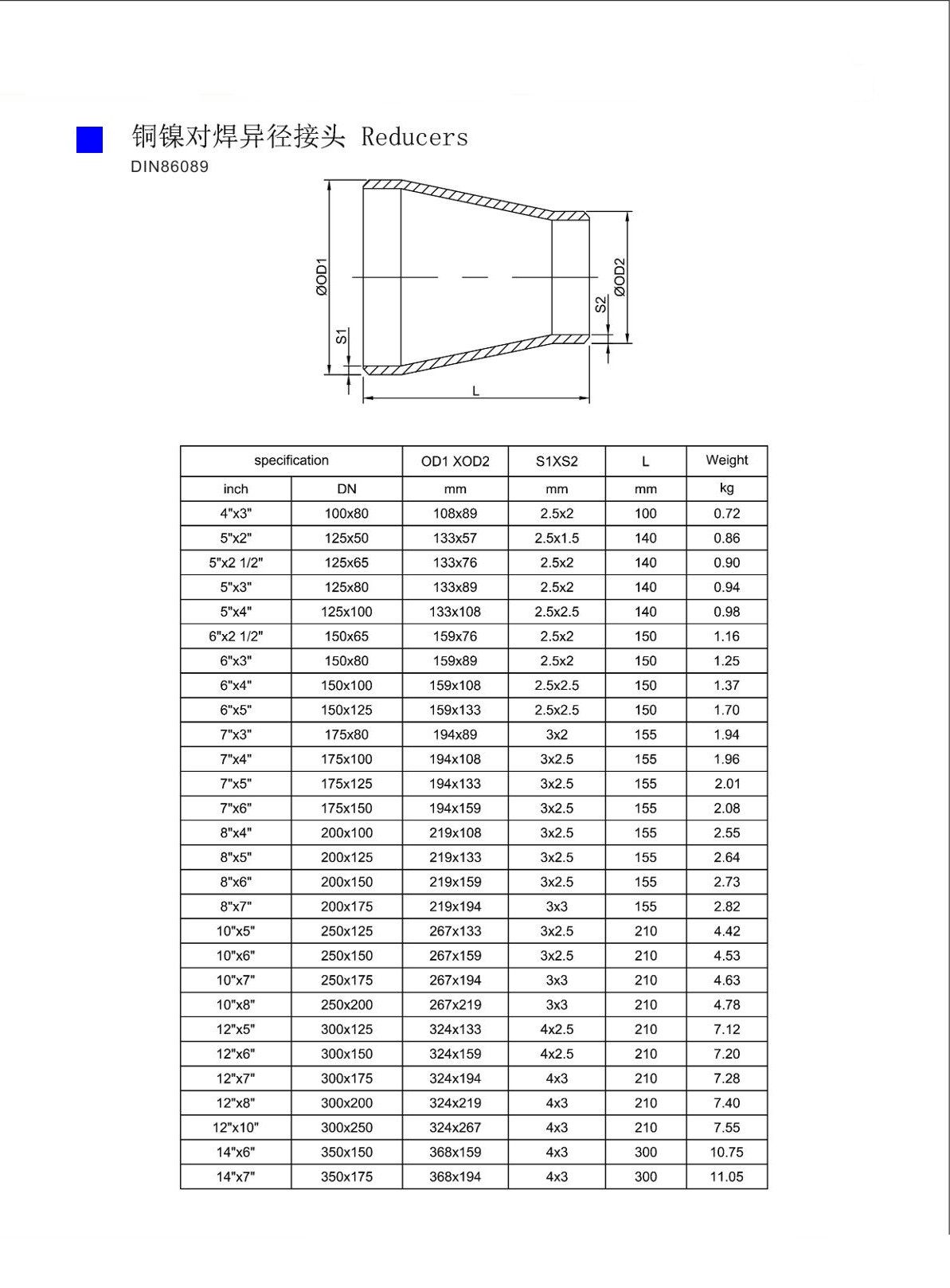

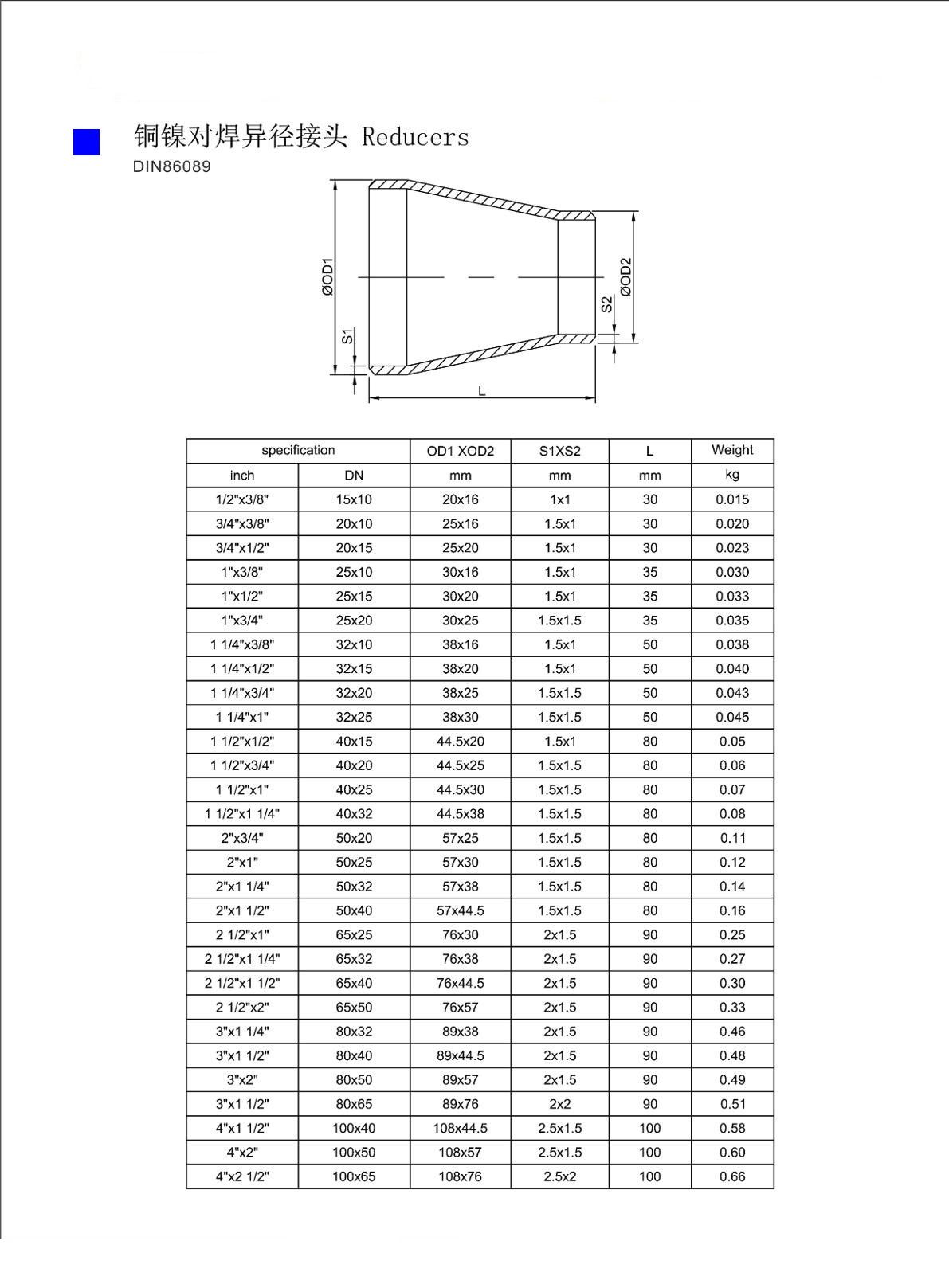

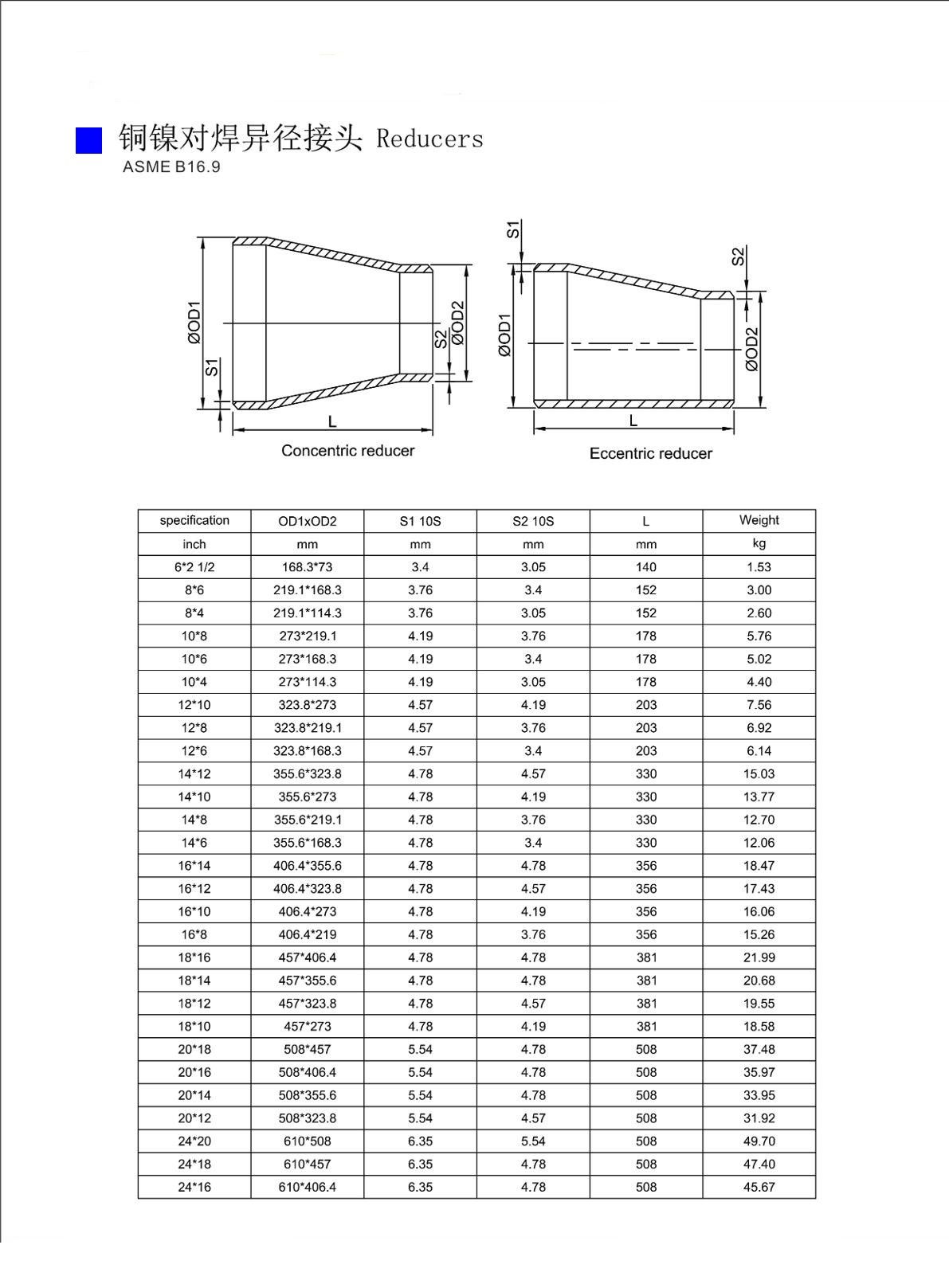

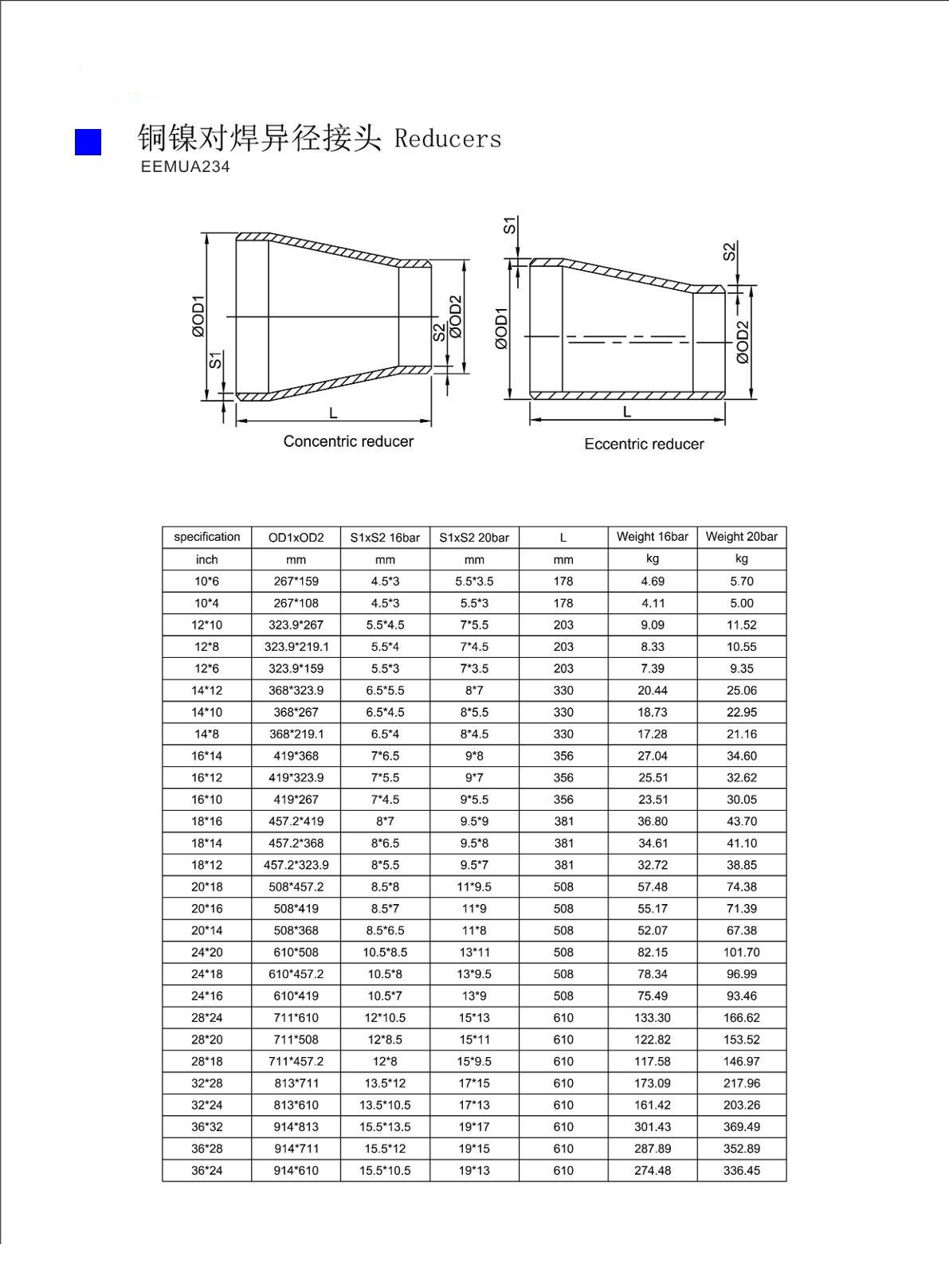

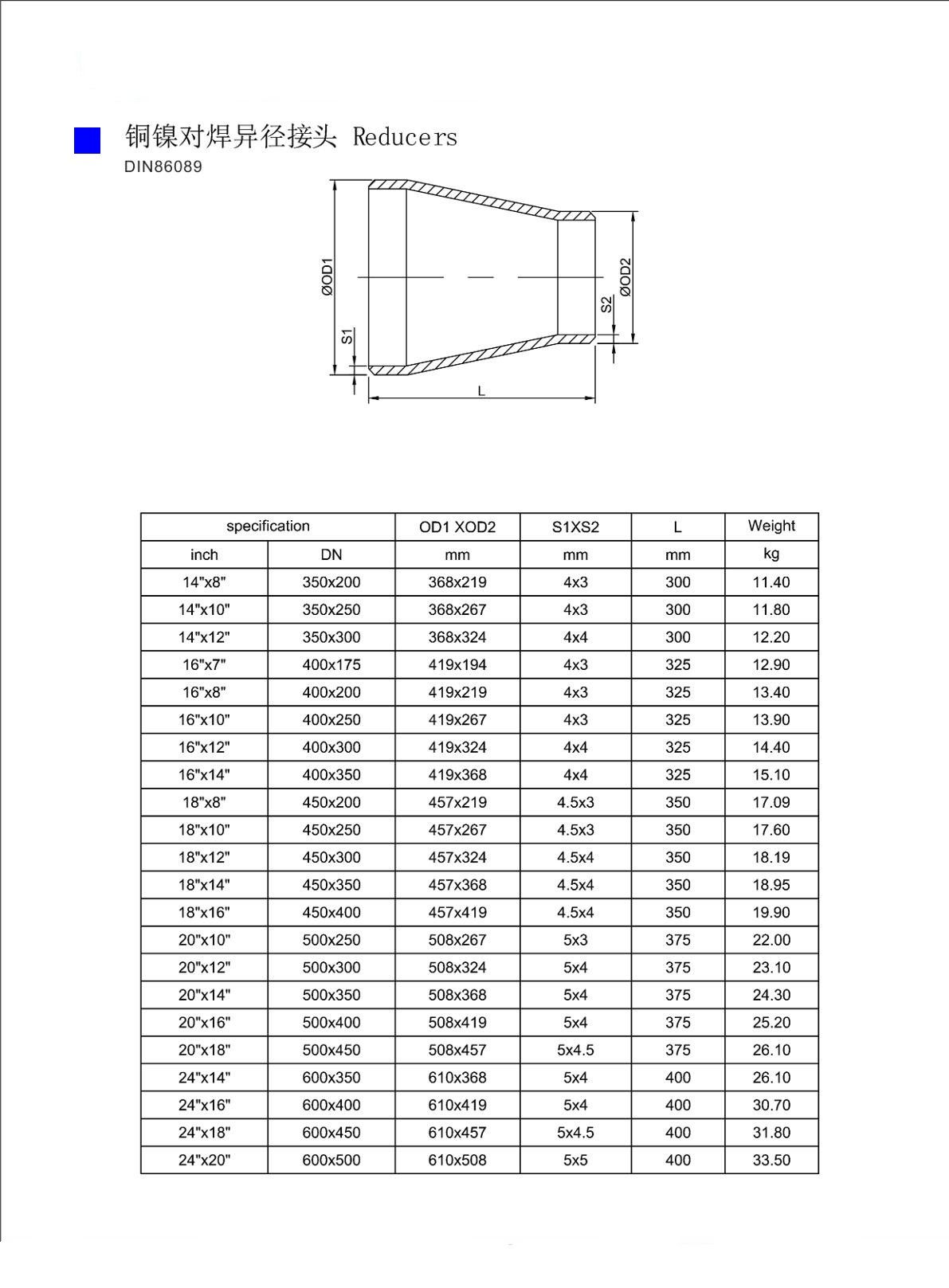

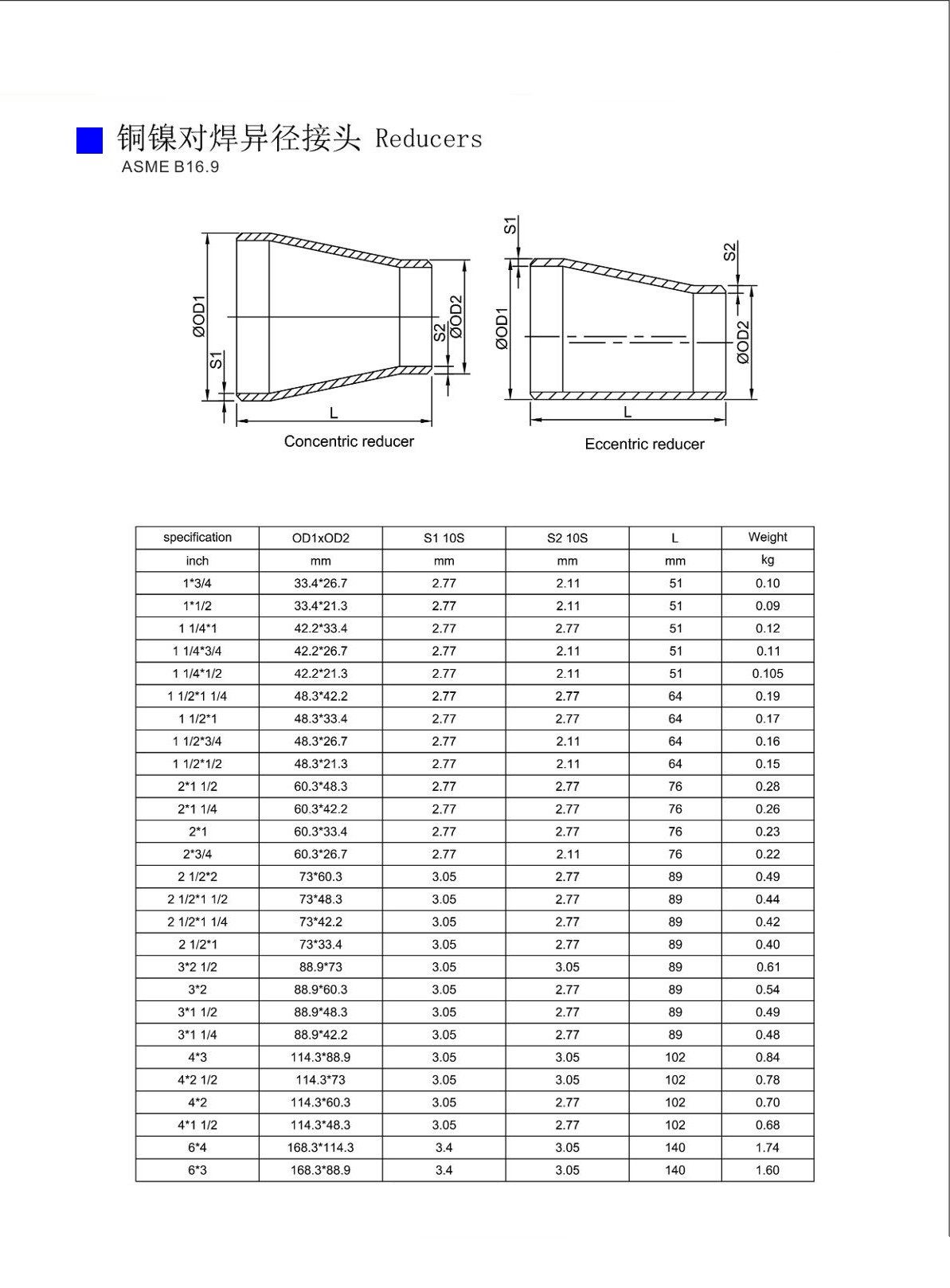

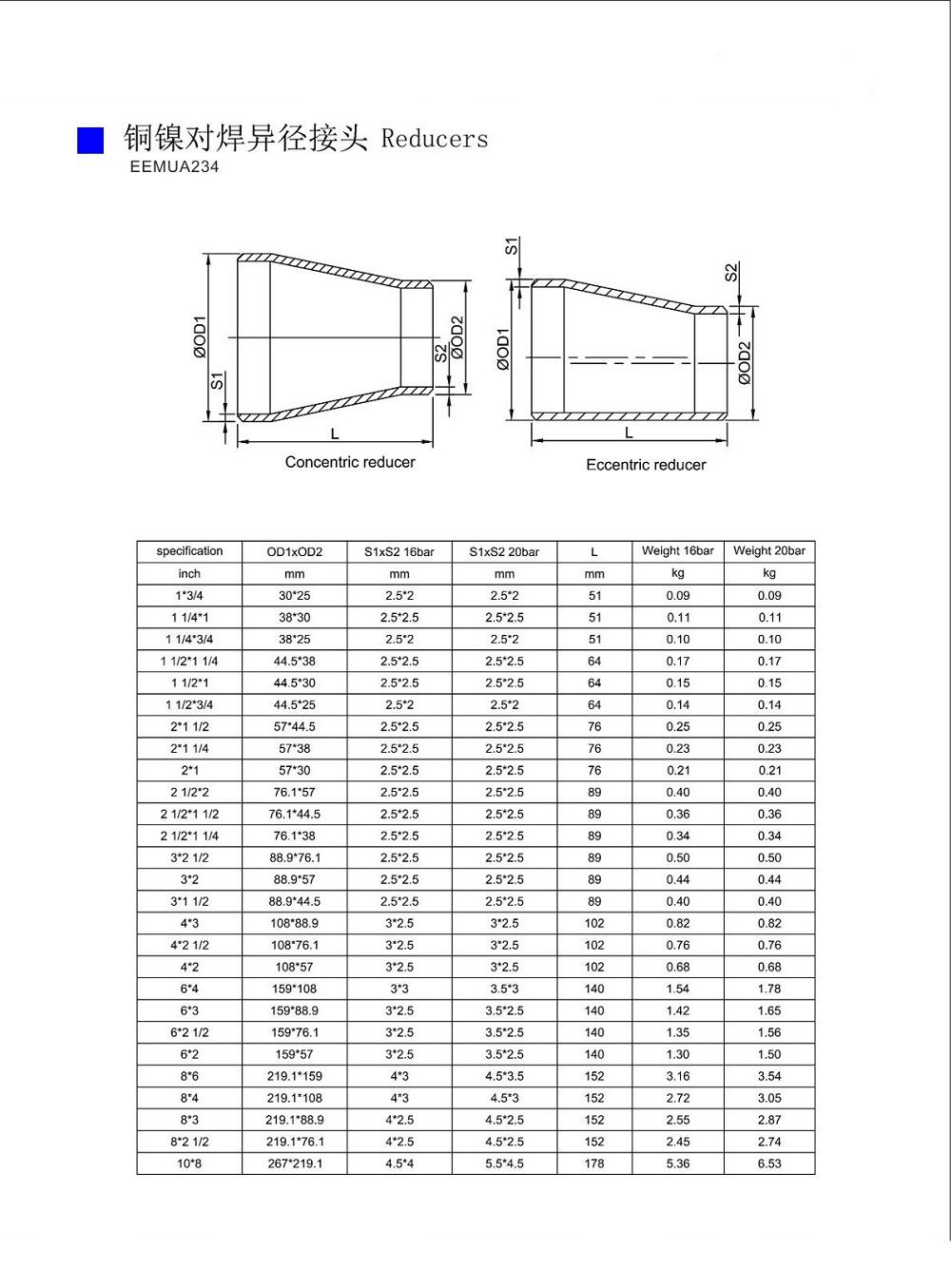

Copper Nickel Reducer Specification

Copper Nickel Concentric Reducer VS Eccentric Reducer

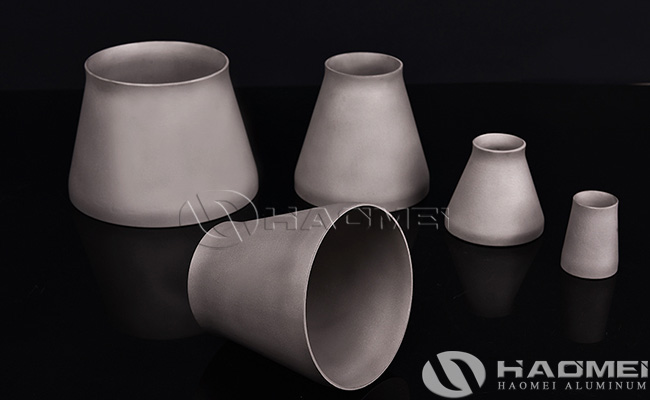

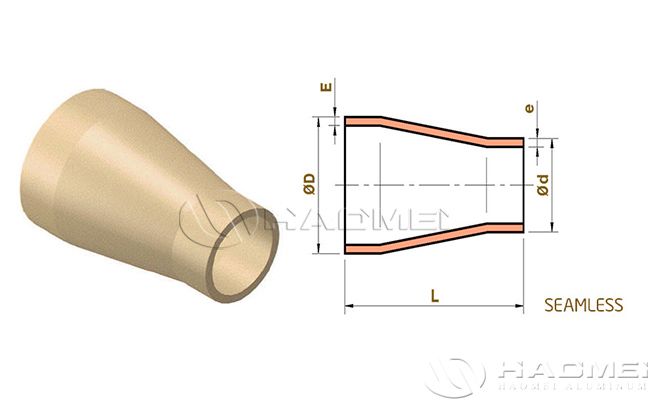

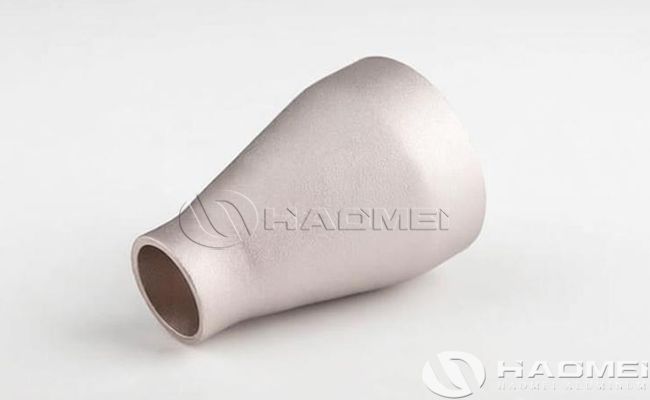

Copper Nickel Concentric Reducer

Copper nickel concentric reducer has both ends aligned on the same center line. It is commonly used for vertical pipelines and applications where the pipeline centerline needs to remain unchanged. It provides a smooth and symmetrical transition between two pipe sizes.

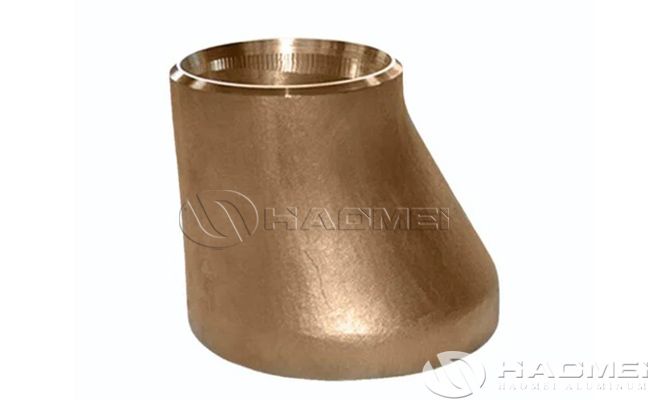

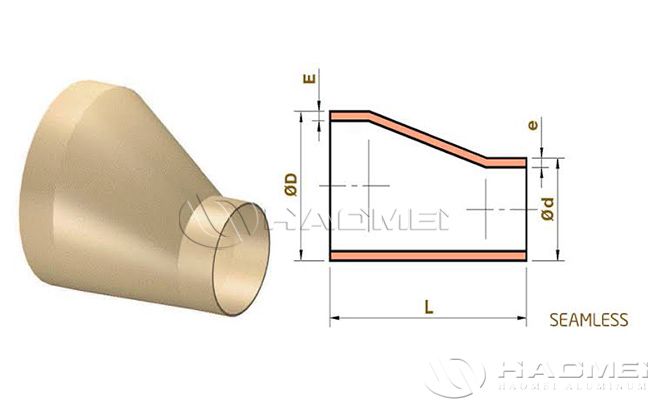

Copper Nickel Eccentric Reducer

Copper nickel eccentric reducer has offset center lines between the large end and small end. It is commonly used in horizontal piping systems, especially at pump suction lines or drainage-related pipe arrangements, where it helps reduce the risk of air pockets or liquid accumulation.

90/10 VS 70/30 Copper Nickel Reducer

90/10 copper nickel reducers are commonly used for general marine seawater piping systems. 70/30 copper nickel reducers are recommended for offshore, high-strength, higher pressure or more severe seawater service conditions.

Matching Copper Nickel Pipe Fittings

We can supply complete copper nickel piping products together with copper nickel reducers, including:

• Copper nickel pipe

• Copper nickel elbow

• Copper nickel tee

• Copper nickel flange

• Copper nickel cap

• Copper nickel stub end

• Copper nickel coupling

• Copper nickel union

• Copper nickel pipe spool

• Custom copper nickel fittings



Quality Control and Inspection

To ensure reliable performance in marine and seawater environments, copper nickel reducers can be inspected according to project specifications and applicable standards.

Available inspection items include:

• Chemical composition analysis

• Mechanical property test if required

• Visual inspection

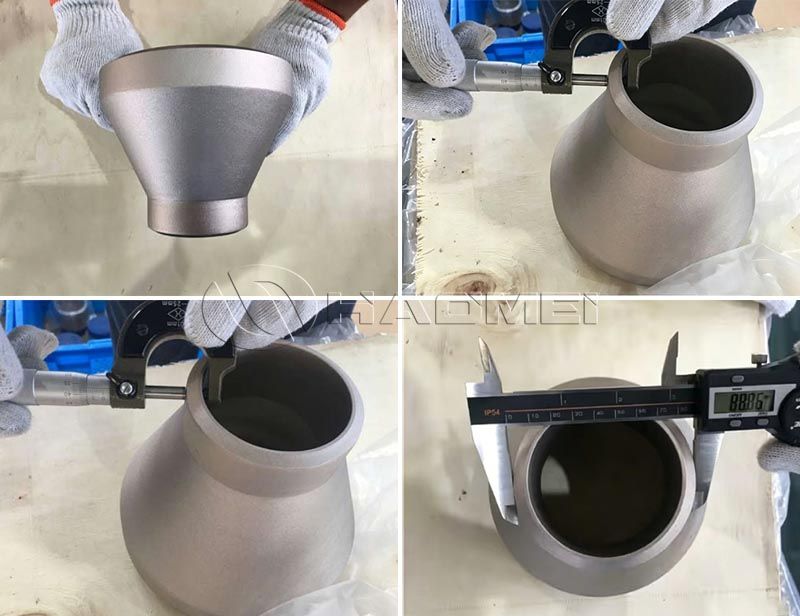

• Dimensional inspection

• Wall thickness inspection

• Large end and small end size inspection

• Concentricity or eccentricity inspection

• Surface quality inspection

• PMI material verification

• Dye penetrant test if required

• Ultrasonic test if required

• Hydrostatic test if applicable

• Weld inspection if applicable

• Third-party inspection

• Classification society inspection upon request

• Material test certificate

Packaging of Copper Nickel Reducer

Copper nickel reducers are packed carefully to avoid collision, deformation, scratching and contamination during transportation. Standard export packing includes plastic wrapping, carton boxes, wooden cases, wooden pallets and seaworthy packing.

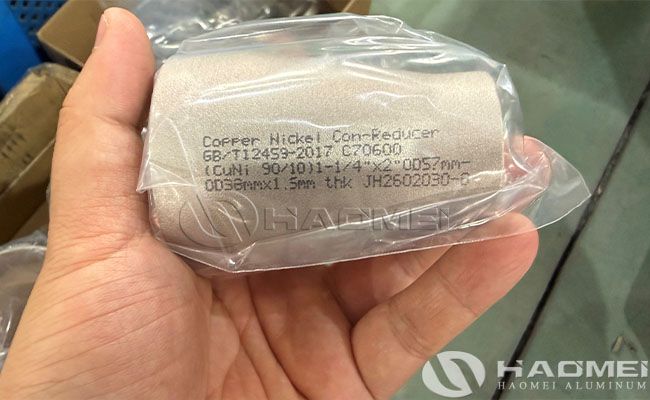

For project orders, each package can be marked according to size, material grade, heat number, quantity and customer requirements.

Why Choose Us for Copper Nickel Reducer?

• Supply 90/10 and 70/30 copper nickel reducers

• Available materials: C70600, C71500, CuNi10Fe1Mn, CuNi30Mn1Fe

• Concentric reducer, eccentric reducer and custom reducer available

• Standard sizes and custom drawings are supported

• Matching copper nickel pipes, elbows, tees, flanges and stub ends can be supplied

• Suitable for marine, offshore, desalination and seawater systems

• Strict dimensional inspection and material control

• Third-party inspection can be arranged upon request

• Export seaworthy packing for safe delivery

• Technical support for copper nickel piping projects
