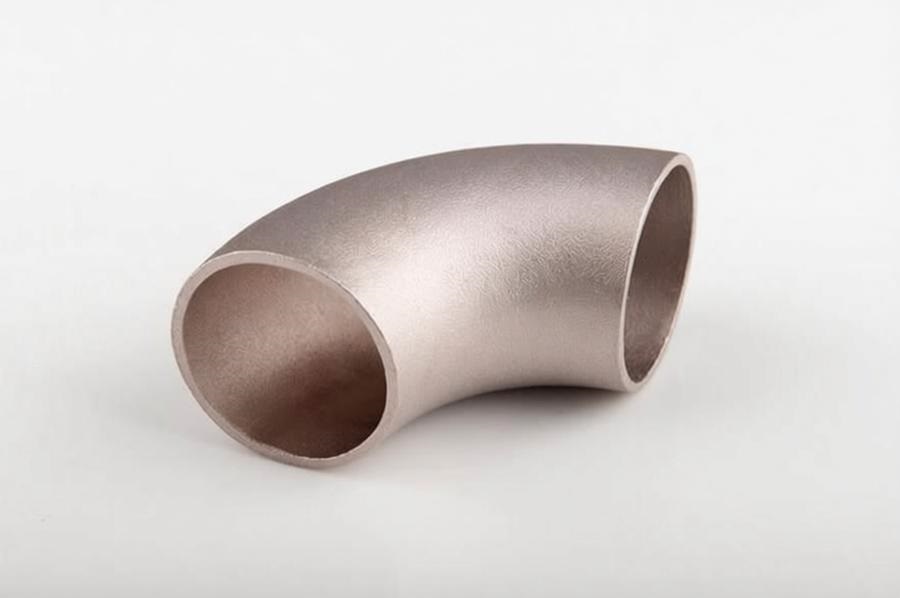

Copper Nickel Elbow is an important pipe fitting used to change the direction of copper nickel piping systems. Copper nickel elbow is designed for copper nickel piping systems where reliable corrosion resistance and long service life are required. Due to the excellent resistance of copper nickel alloys to seawater corrosion, erosion corrosion and marine biofouling, copper nickel elbows are widely used in marine seawater pipelines, shipbuilding, offshore platforms, desalination plants, heat exchangers and coastal industrial piping systems.

In seawater service, copper nickel alloys can form a stable protective film on the internal surface, helping reduce corrosion and extending the service life of the piping system. Copper nickel elbows also offer good weldability and fabrication performance, making them suitable for shipbuilding installation and prefabricated pipe spool systems. Copper nickel elbows can be supplied together with copper nickel pipes, tees, reducers, flanges, stub ends and other pipe fittings to provide a complete marine copper nickel piping solution.

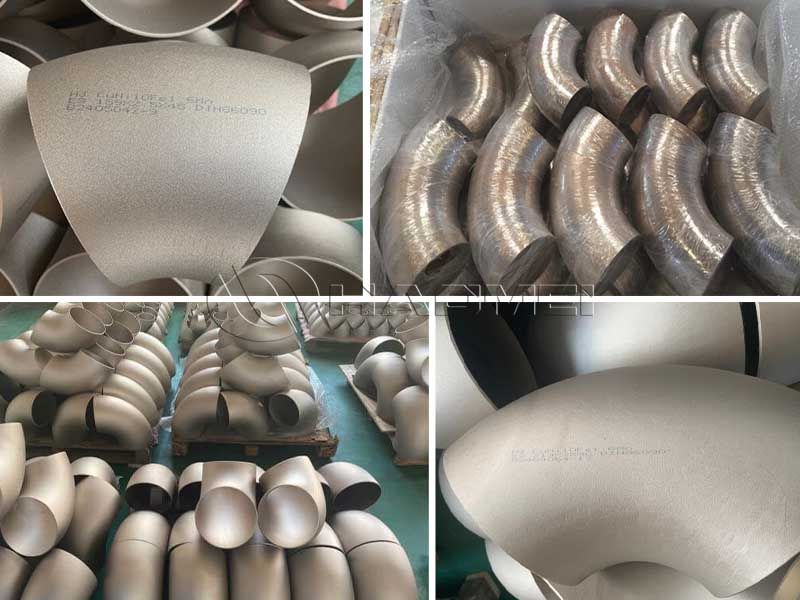

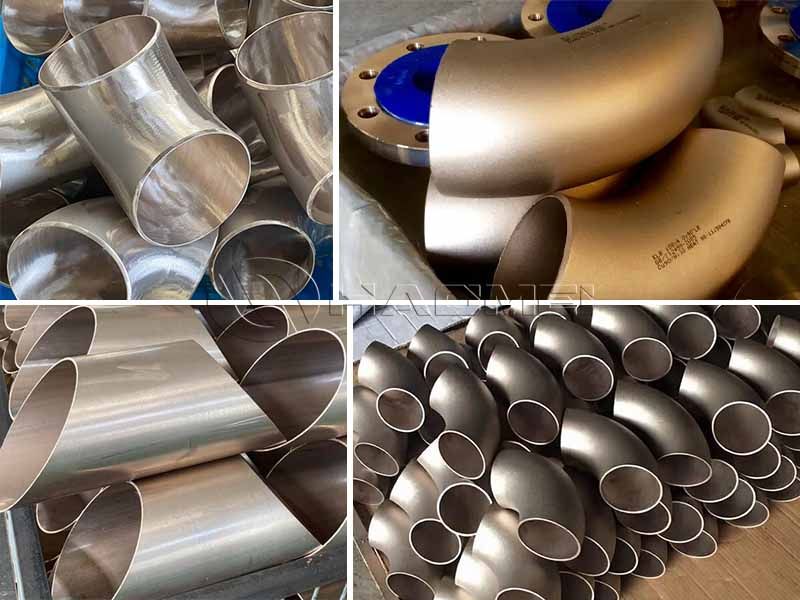

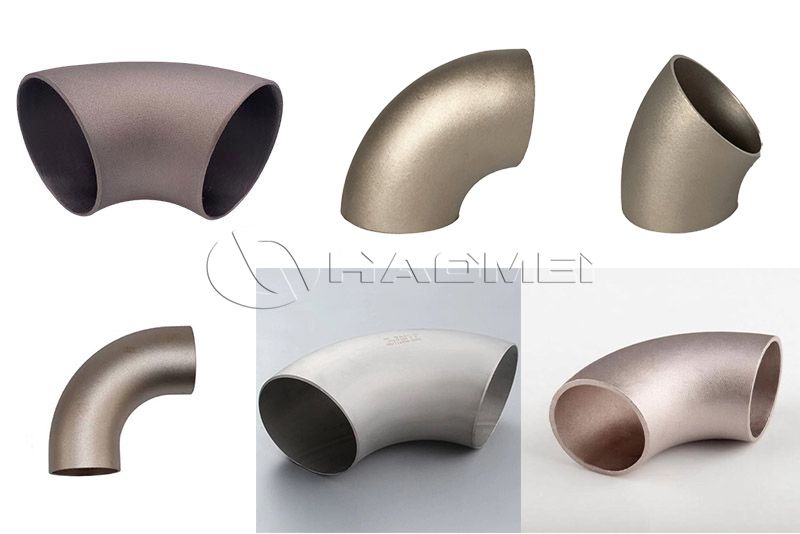

We supply copper nickel elbows in 90/10 copper nickel C70600 / CuNi10Fe1Mn and 70/30 copper nickel C71500 / CuNi30Mn1Fe materials. Available types include 45 degree elbows, 90 degree elbows, 180 degree elbows, long radius elbows, short radius elbows and custom fabricated elbows according to project drawings.

Available Types of Copper Nickel Elbow

Copper Nickel Elbow Material Grades

Standards for Copper Nickel Elbow

Copper nickel elbows can be supplied according to international standards, marine standards or customer project specifications.

Common standards include:

• ASME B16.9

• MSS SP-43

• ASTM B366

• EEMUA standards for copper nickel piping systems

• DIN marine piping standards

• EN copper alloy piping standards

• Customer drawings and project specifications

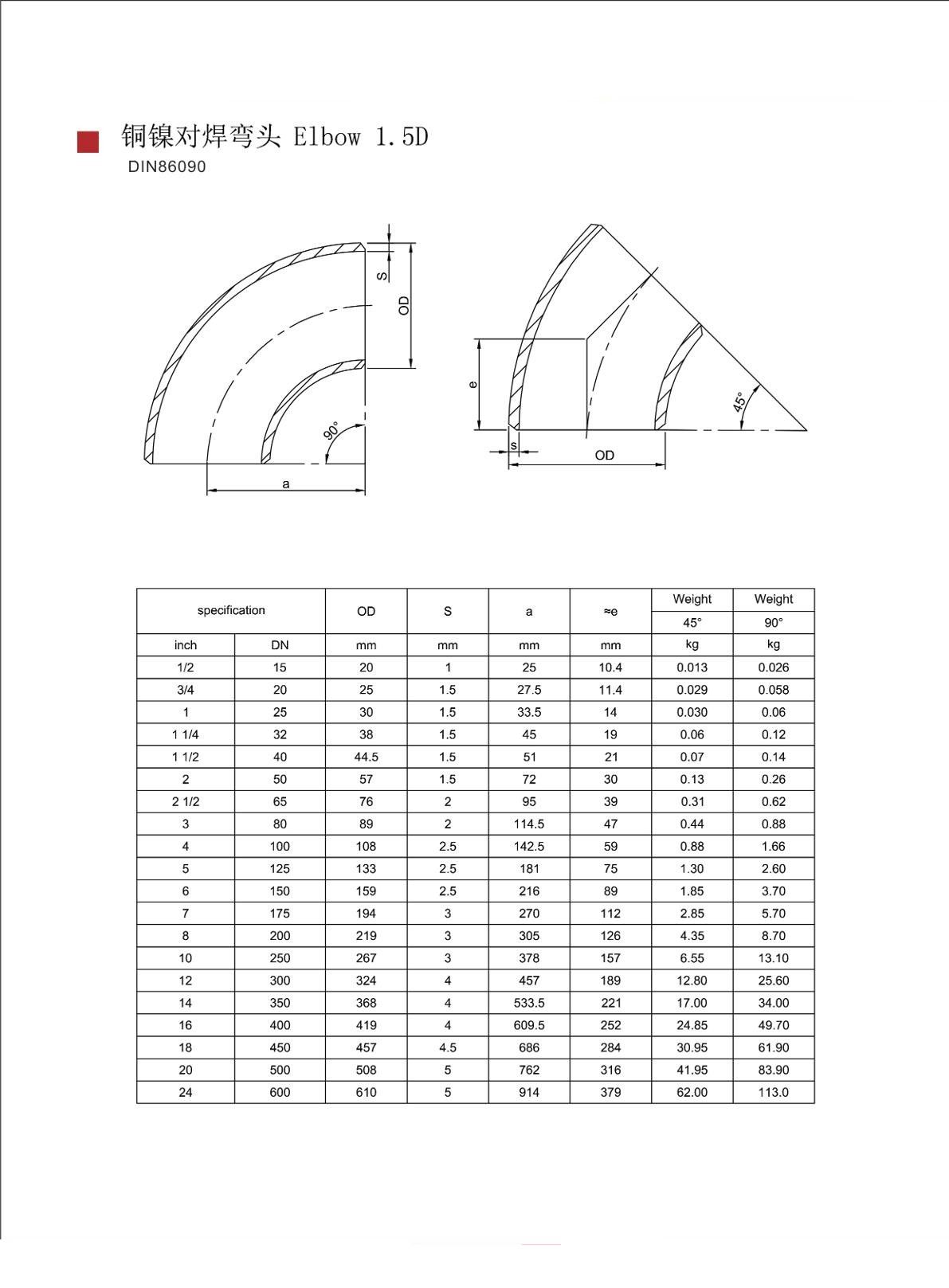

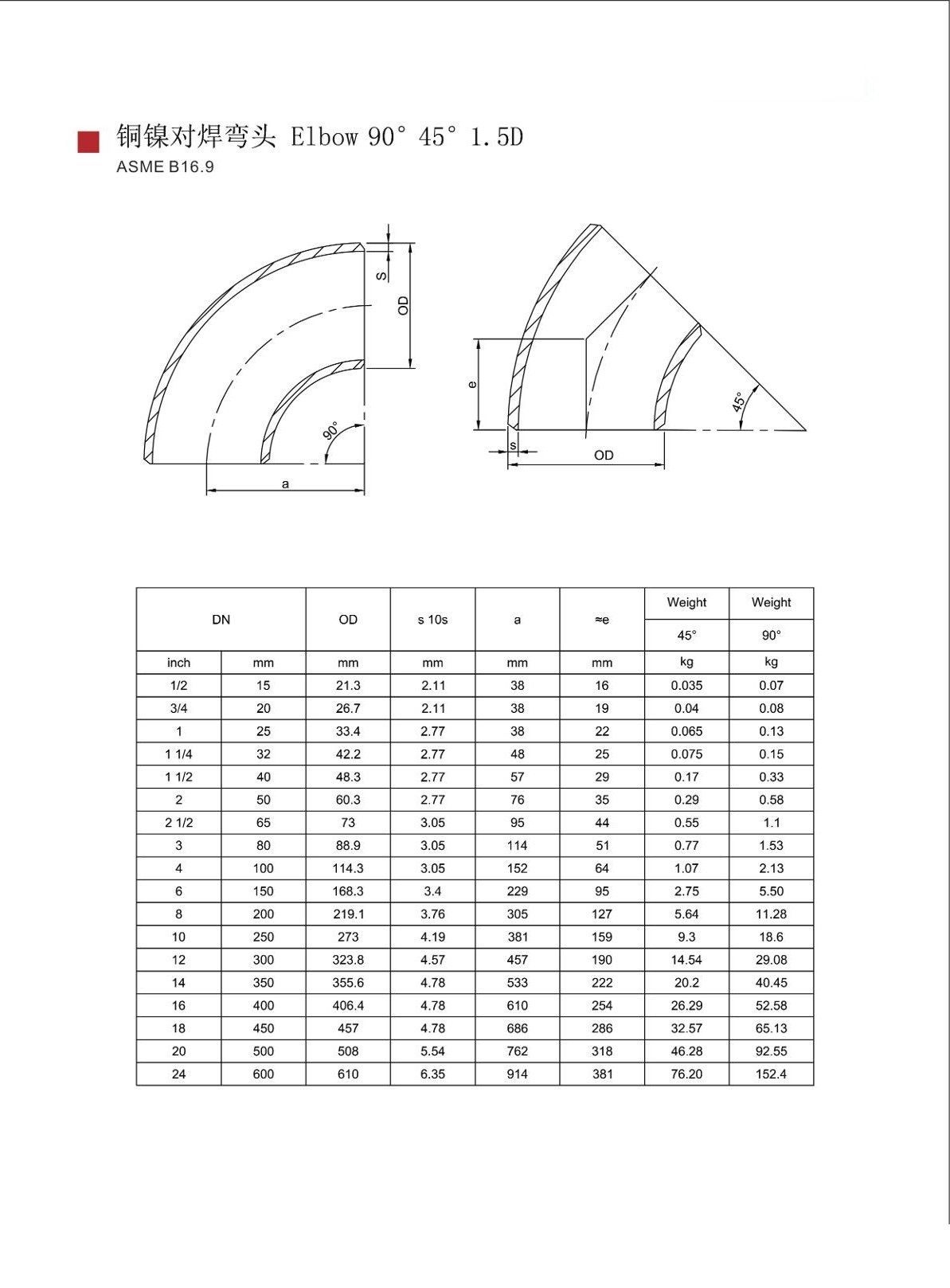

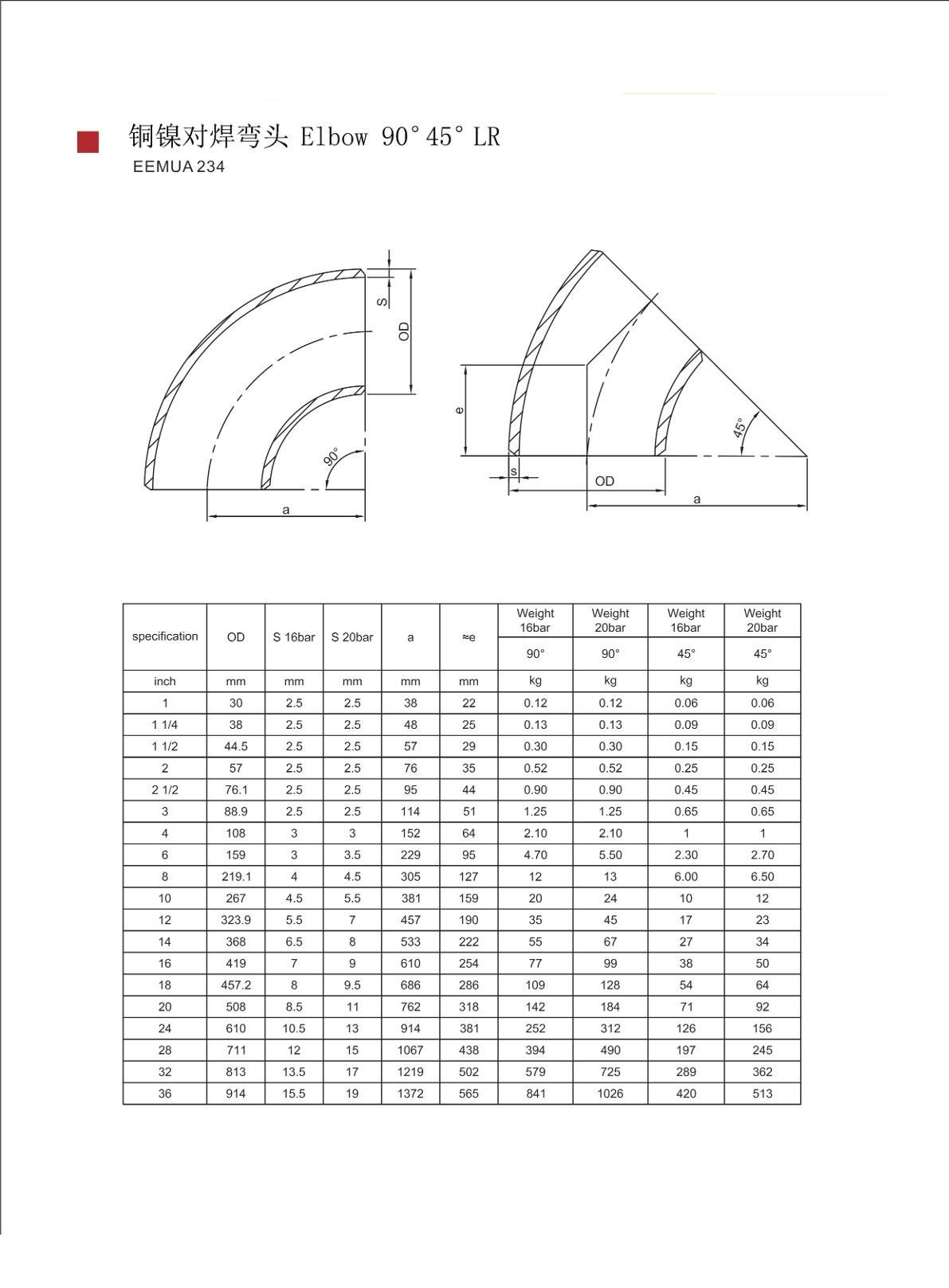

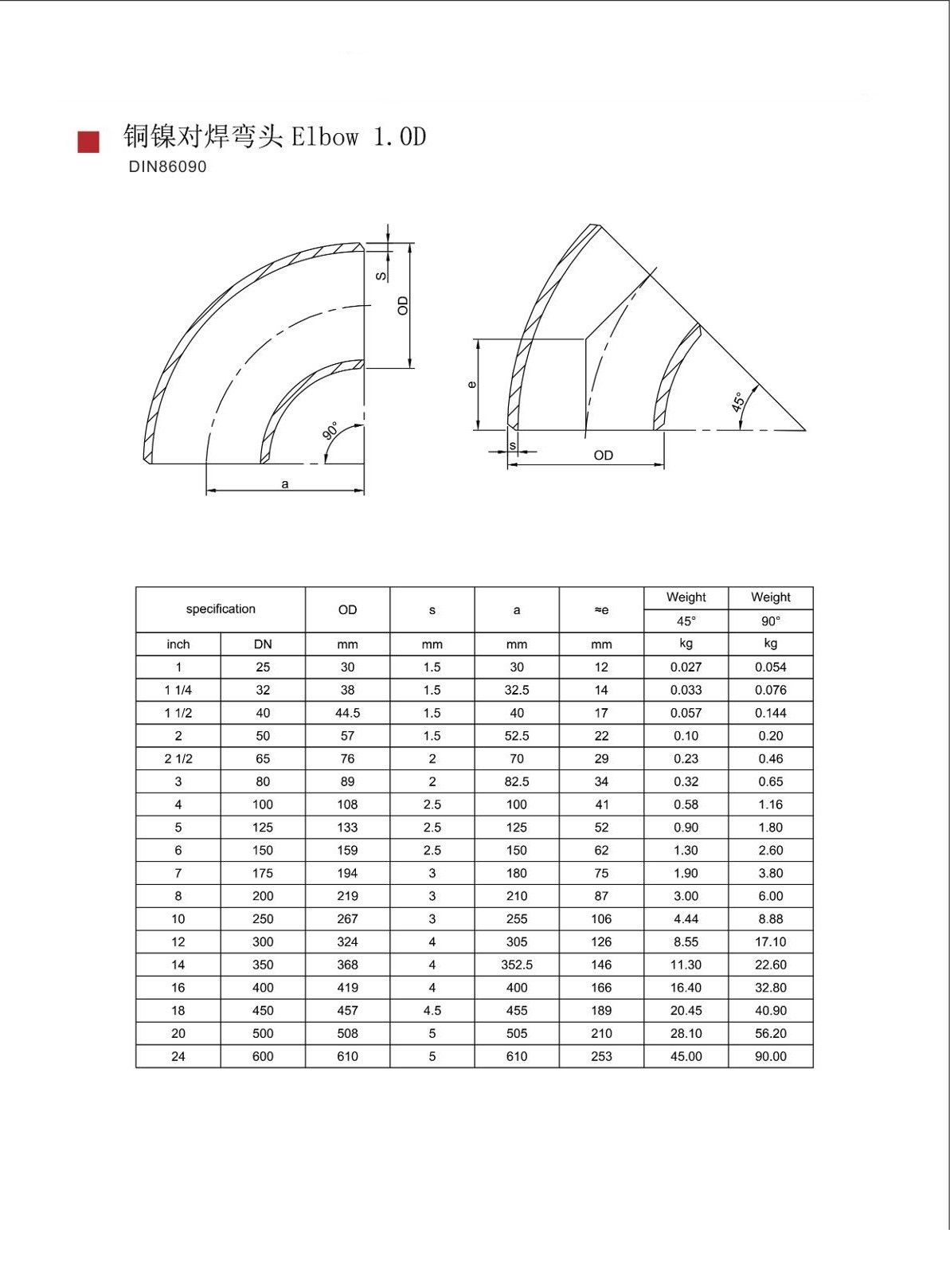

Copper Nickel Elbow Specification

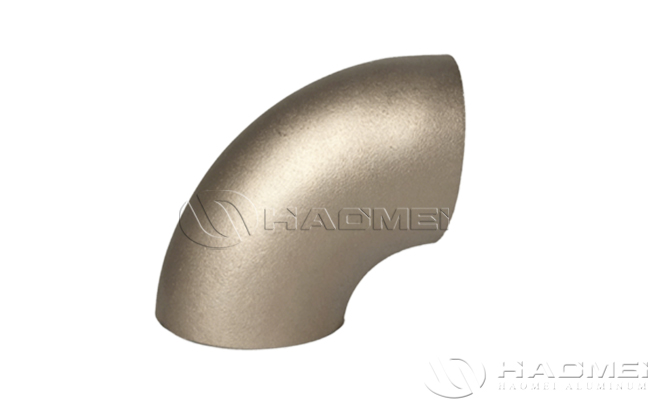

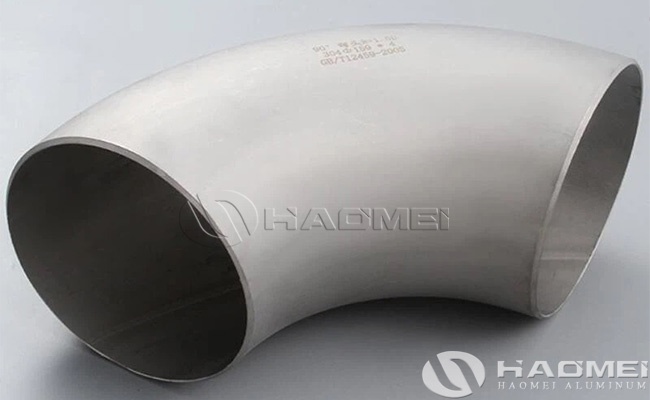

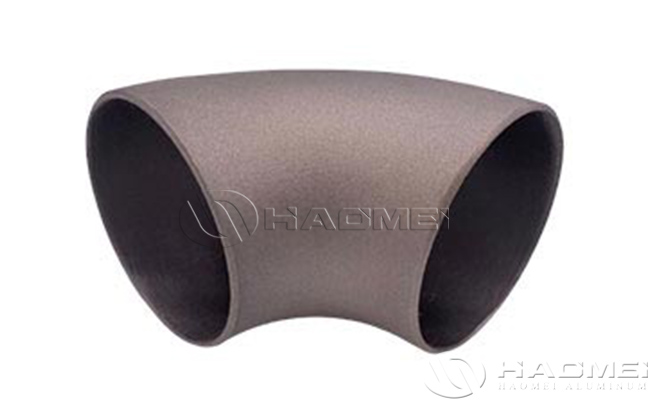

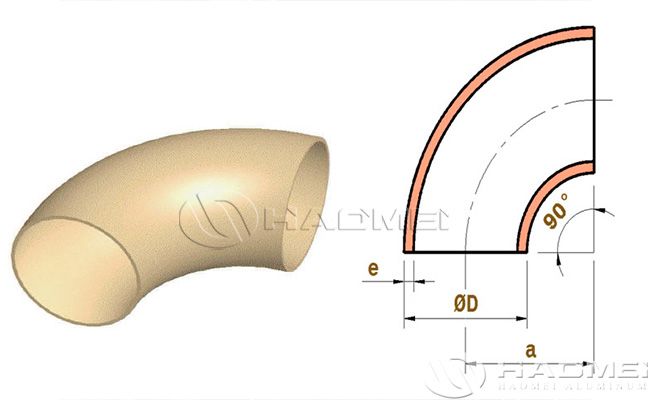

Copper Nickel 90 Degree Elbow

Copper nickel 90 degree elbow is one of the most commonly used CuNi pipe fittings. It is used to change the pipe direction by 90 degrees and is widely installed in marine seawater cooling, fire water, ballast water and offshore piping systems.

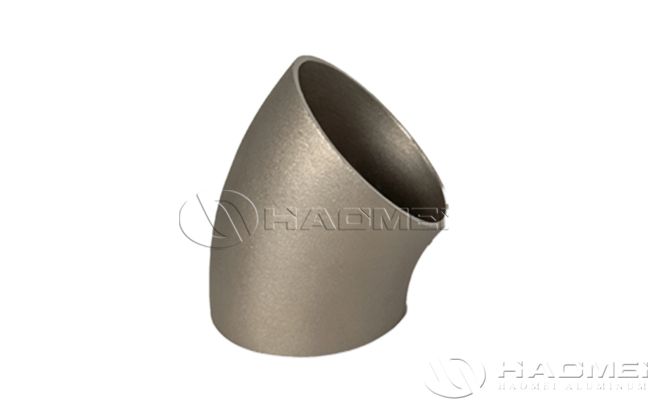

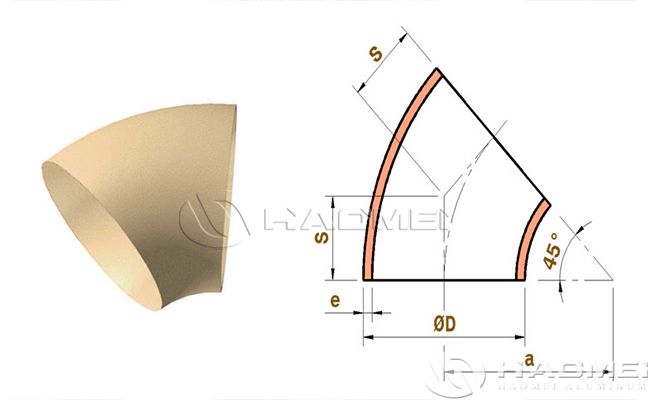

Copper Nickel 45 Degree Elbow

Copper nickel 45 degree elbow is used where a smaller change in pipe direction is required. It helps reduce flow resistance compared with a sharp direction change and is suitable for compact marine piping arrangements.

Difference Between 90/10 and 70/30 Copper Nickel Elbow

90/10 copper nickel elbows are commonly used for general marine seawater piping systems. 70/30 copper nickel elbows are recommended for more demanding offshore, high-strength or higher flow seawater applications.

Matching Copper Nickel Pipe Fittings

We can supply complete copper nickel piping products together with copper nickel elbows, including:

• Copper nickel pipe

• Copper nickel tee

• Copper nickel reducer

• Copper nickel flange

• Copper nickel cap

• Copper nickel stub end

• Copper nickel coupling

• Copper nickel union

• Copper nickel pipe spool

• Custom copper nickel fittings

Supplying pipes and fittings together helps ensure material compatibility, dimensional accuracy and easier installation for marine piping projects.

Quality Control and Inspection

To ensure reliable performance in marine and seawater environments, copper nickel elbows can be inspected according to project specifications and applicable standards.

Available inspection items include:

• Chemical composition analysis

• Mechanical property test if required

• Visual inspection

• Dimensional inspection

• Wall thickness inspection

• Angle and radius inspection

• Surface quality inspection

• PMI material verification

• Dye penetrant test if required

• Ultrasonic test if required

• Hydrostatic test if applicable

• Third-party inspection

• Classification society inspection upon request

• Material test certificate

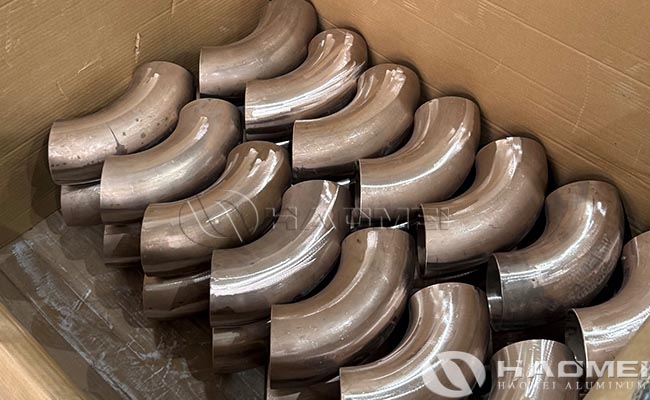

Packaging of Copper Nickel Elbow

Copper nickel elbows are packed carefully to avoid collision, deformation, scratching and contamination during transportation. Standard export packing includes plastic wrapping, carton boxes, wooden cases, wooden pallets and seaworthy packing.

For project orders, each package can be marked according to size, material grade, heat number, quantity and customer requirements.

Why Choose Us for Copper Nickel Elbow?

• Supply 90/10 and 70/30 copper nickel elbows

• Available materials: C70600, C71500, CuNi10Fe1Mn, CuNi30Mn1Fe

• 45°, 90°, 180°, long radius and short radius elbows available

• Standard sizes and custom drawings are supported

• Matching copper nickel pipes, flanges and fittings can be supplied

• Suitable for marine, offshore, desalination and seawater systems

• Strict dimensional inspection and material control

• Third-party inspection can be arranged upon request

• Export seaworthy packing for safe delivery

• Technical support for copper nickel piping projects

Request a Quote for Copper Nickel Elbow

Please send us your required material grade, elbow angle, size, wall thickness, radius type, standard, quantity and inspection requirements. If you have drawings or project specifications, please send them to us for a fast quotation.
