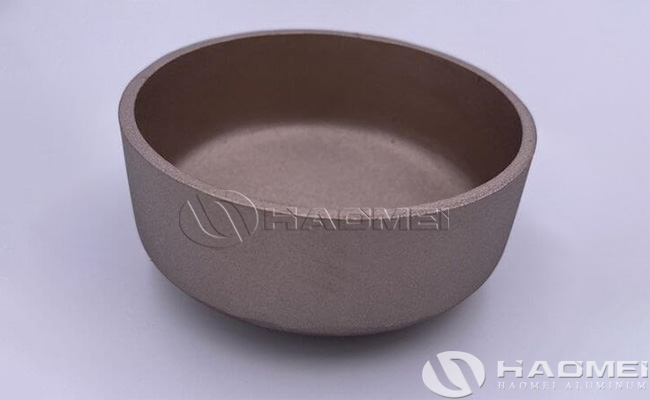

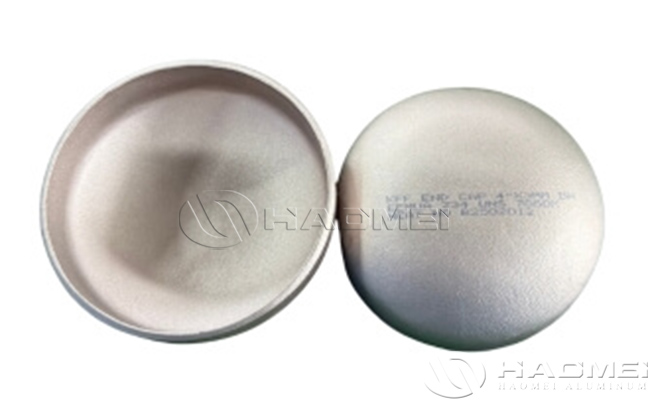

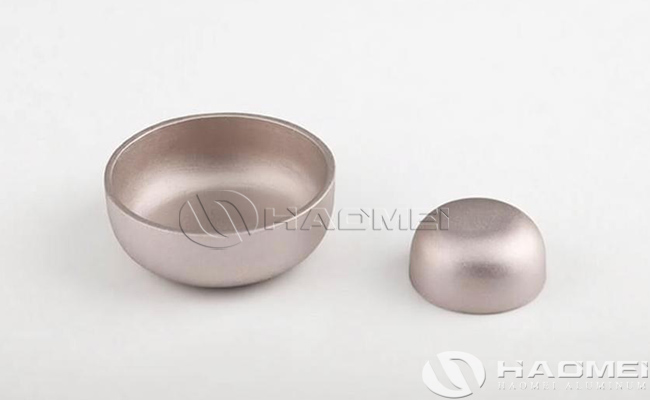

Copper nickel cap is designed to seal the end of copper nickel pipes or piping components. It is commonly used when a pipeline needs to be closed permanently or temporarily for pressure retention, protection, maintenance or future extension. It is widely used in marine seawater piping, shipbuilding, offshore platforms, desalination plants, seawater cooling systems, fire water systems, ballast water systems and heat exchanger pipelines.

Due to the excellent resistance of copper nickel alloys to seawater corrosion, erosion corrosion and marine biofouling, copper nickel caps are widely used in marine and offshore piping systems. In seawater service, copper nickel alloys can form a stable protective layer on the inner surface, helping improve the long-term reliability of the piping system.

Copper nickel caps offer good weldability, formability and fabrication performance. They can be supplied together with copper nickel pipes, elbows, tees, reducers, flanges, stub ends and other fittings for complete marine copper nickel piping projects.

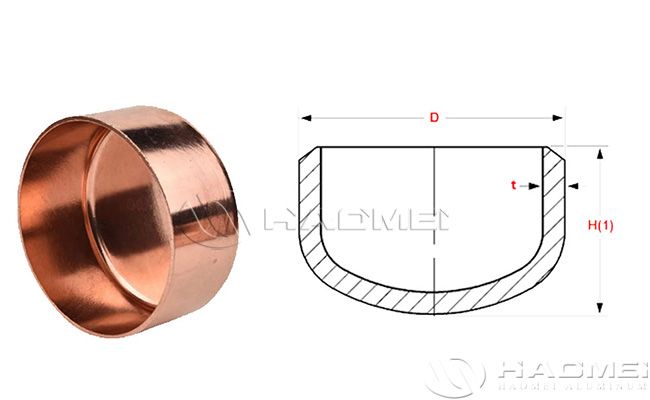

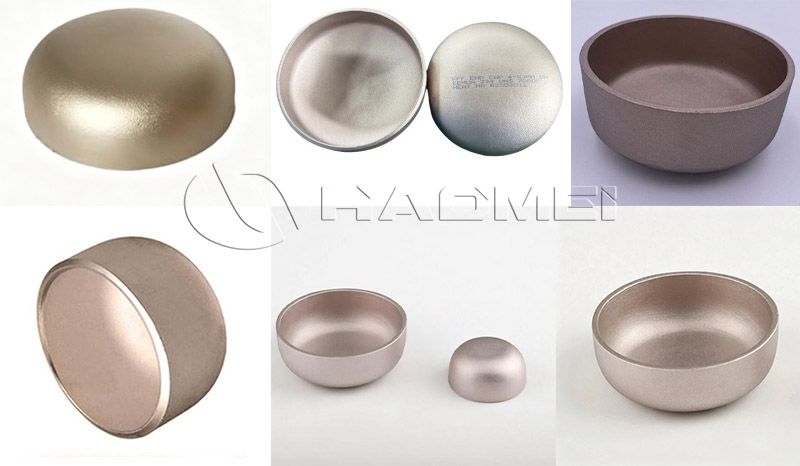

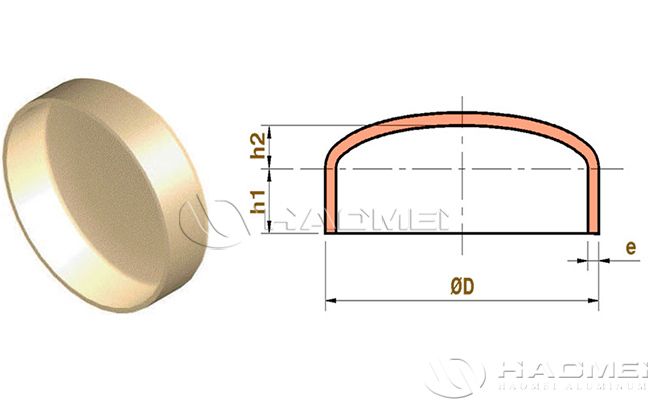

We supply copper nickel caps in 90/10 copper nickel C70600 / CuNi10Fe1Mn and 70/30 copper nickel C71500 / CuNi30Mn1Fe materials. Available types include copper nickel pipe caps, butt weld caps, end caps, fabricated caps and custom caps according to customer drawings or project specifications.

Available Types of Copper Nickel Cap

Copper Nickel Cap Material Grades

Standards for Copper Nickel Cap

Copper nickel caps can be supplied according to international standards, marine standards or customer project specifications.

Common standards include:

• ASME B16.9

• MSS SP-43

• ASTM B366

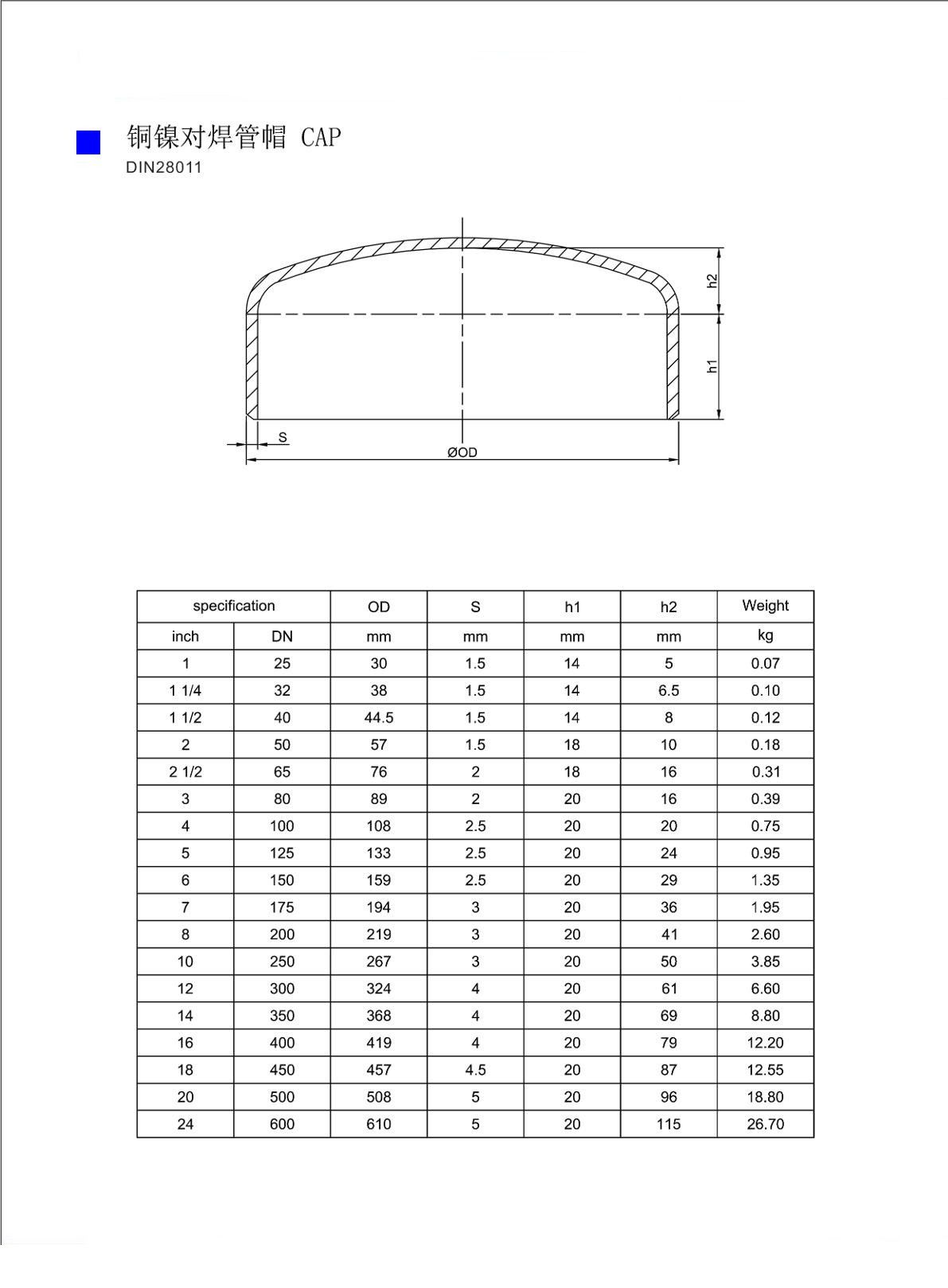

• DIN marine piping standards

• EN copper alloy piping standards

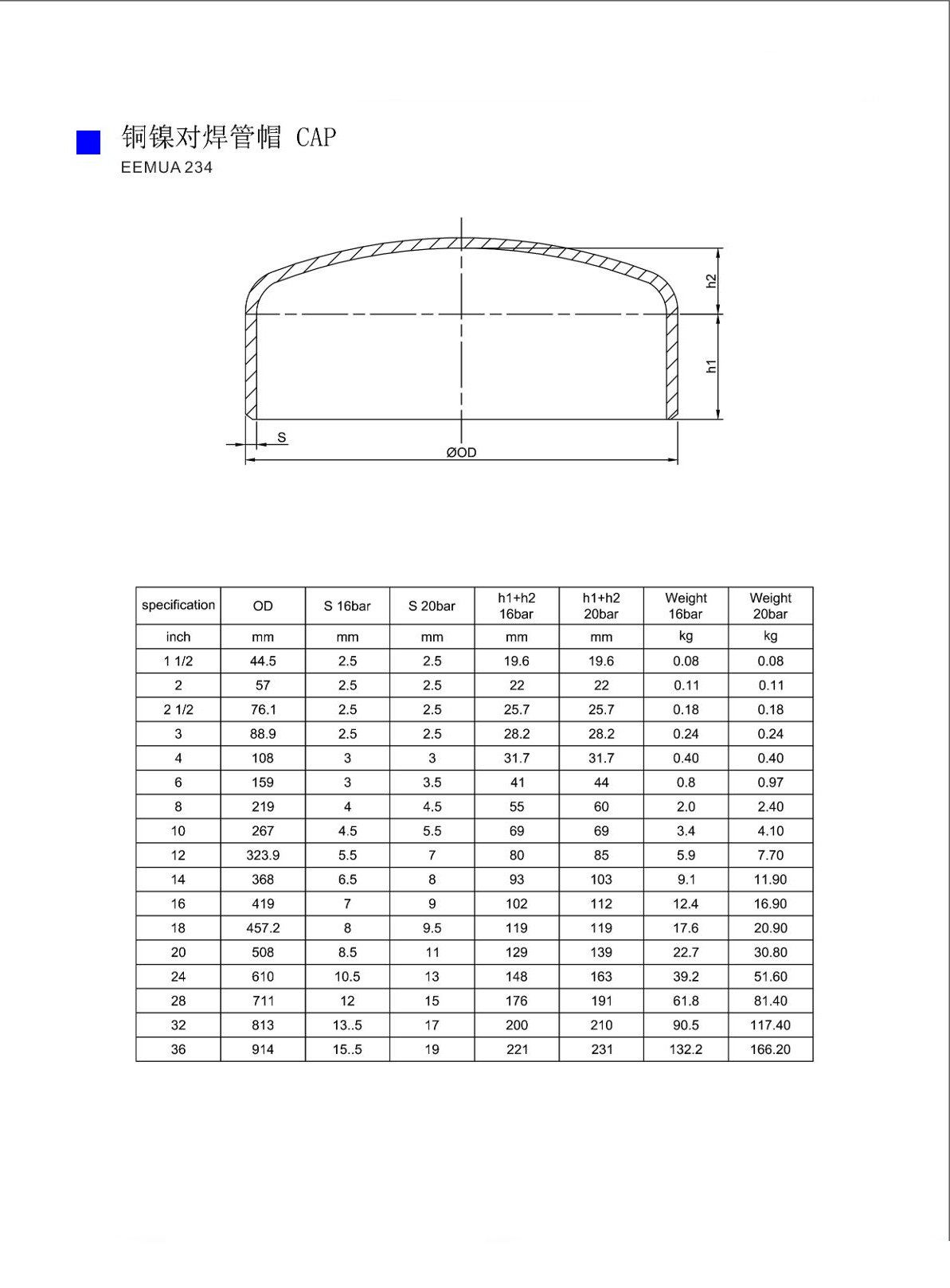

• EEMUA standards for copper nickel piping systems

• Customer drawings and project specifications

Copper Nickel Cap Specification

Main Functions of Copper Nickel Cap

Copper nickel caps are mainly used for the following purposes:

• Sealing the end of a copper nickel pipeline

• Protecting pipe ends from contamination or damage

• Closing unused branch connections

• Preparing piping systems for pressure testing

• Temporary closure during installation or maintenance

• Permanent closure for completed pipe sections

• Allowing future pipeline extension when required

90/10 VS 70/30 Copper Nickel Cap

90/10 copper nickel caps are commonly used for general marine seawater piping systems. 70/30 copper nickel caps are recommended for offshore, high-strength, higher pressure or more severe seawater service conditions.

Matching Copper Nickel Pipe Fittings

We can supply complete copper nickel piping products together with copper nickel caps, including:

• Copper nickel pipe

• Copper nickel elbow

• Copper nickel tee

• Copper nickel reducer

• Copper nickel flange

• Copper nickel stub end

• Copper nickel coupling

• Copper nickel union

• Copper nickel pipe spool

• Custom copper nickel fittings

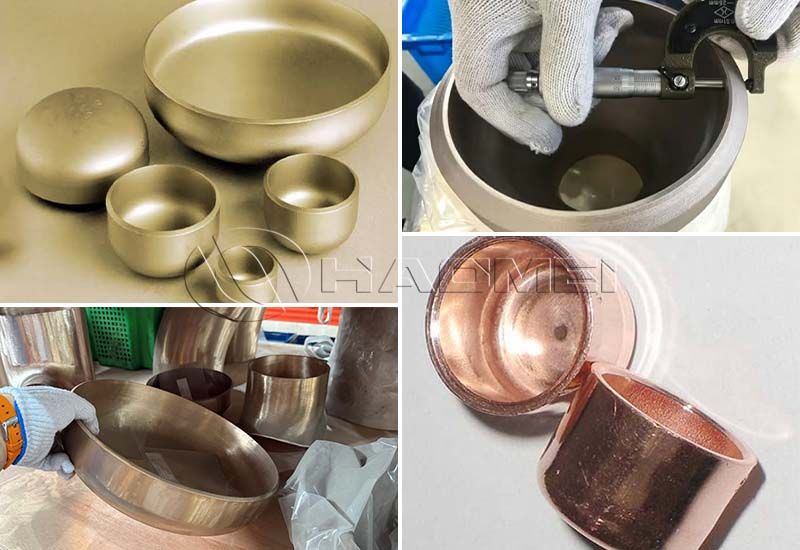

Quality Control and Inspection

To ensure reliable performance in marine and seawater environments, copper nickel caps can be inspected according to project specifications and applicable standards.

Available inspection items include:

• Chemical composition analysis

• Mechanical property test if required

• Visual inspection

• Dimensional inspection

• Wall thickness inspection

• End diameter inspection

• Height and shape inspection

• Surface quality inspection

• PMI material verification

• Dye penetrant test if required

• Ultrasonic test if required

• Hydrostatic test if applicable

• Weld inspection if applicable

• Third-party inspection

• Classification society inspection upon request

• Material test certificate

Packaging of Copper Nickel Cap

Copper nickel caps are packed carefully to avoid collision, deformation, scratching and contamination during transportation. Standard export packing includes plastic wrapping, carton boxes, wooden cases, wooden pallets and seaworthy packing.

For project orders, each package can be marked according to size, material grade, heat number, quantity and customer requirements.

Why Choose Us for Copper Nickel Cap?

• Supply 90/10 and 70/30 copper nickel caps

• Available materials: C70600, C71500, CuNi10Fe1Mn, CuNi30Mn1Fe

• Pipe cap, end cap, weld cap and custom cap available

• Standard sizes and custom drawings are supported

• Matching copper nickel pipes, elbows, tees, reducers, flanges and stub ends can be supplied

• Suitable for marine, offshore, desalination and seawater systems

• Strict dimensional inspection and material control

• Third-party inspection can be arranged upon request

• Export seaworthy packing for safe delivery

• Technical support for copper nickel piping projects
