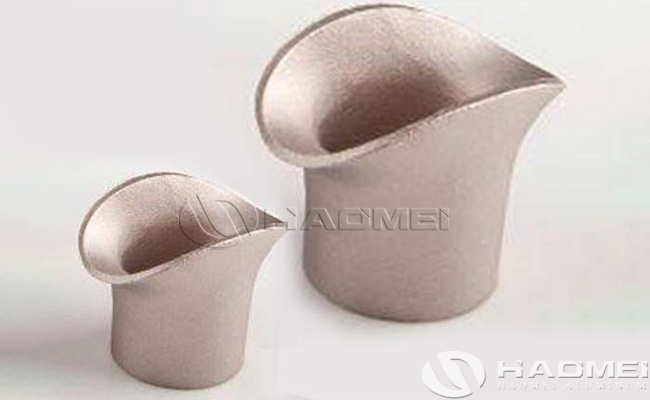

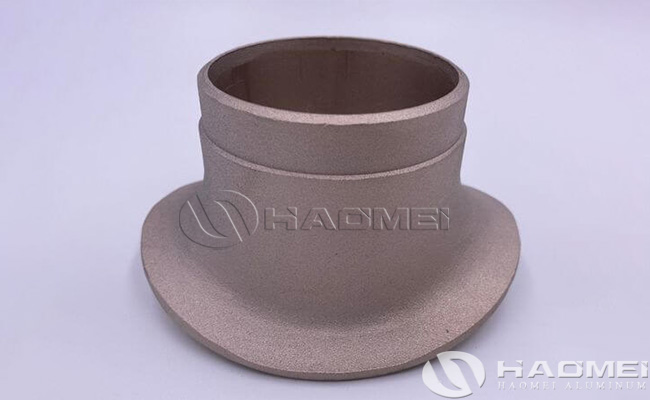

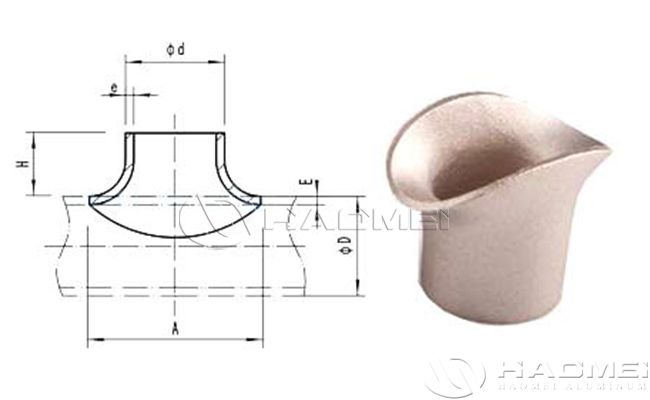

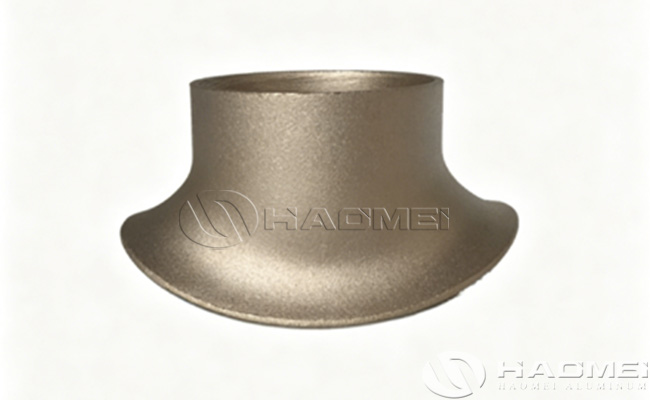

Copper Nickel Saddle is a copper nickel pipe fitting used for branch connections, pipe reinforcement or special pipe saddle arrangements in marine seawater piping systems. It is commonly installed on the main copper nickel pipe to connect a branch line or to provide a shaped saddle fitting for customized piping layouts.

Copper nickel saddle is designed to match the outer surface of a copper nickel main pipe and provide a reliable connection area for branch pipes or special piping components. It is widely used in marine and offshore piping systems where branch connections are required but a standard tee may not be the most suitable option.

Compared with standard tee fittings, copper nickel saddles can offer more flexible installation for customized piping systems, repair sections, reinforcement areas and branch outlets. They are often manufactured according to the main pipe diameter, branch pipe diameter, saddle angle, wall thickness and project drawings.

Copper nickel alloys are widely used in seawater service because of their excellent resistance to seawater corrosion, erosion corrosion and marine biofouling. Copper nickel saddles can be supplied together with copper nickel pipes, elbows, tees, reducers, caps, flanges, stub ends and pipe spools for complete marine piping projects.

We supply copper nickel saddles in 90/10 copper nickel C70600 / CuNi10Fe1Mn and 70/30 copper nickel C71500 / CuNi30Mn1Fe materials. Available products include copper nickel pipe saddles, branch saddles, weld saddles, reinforced saddles and custom fabricated saddles according to customer drawings or project specifications.

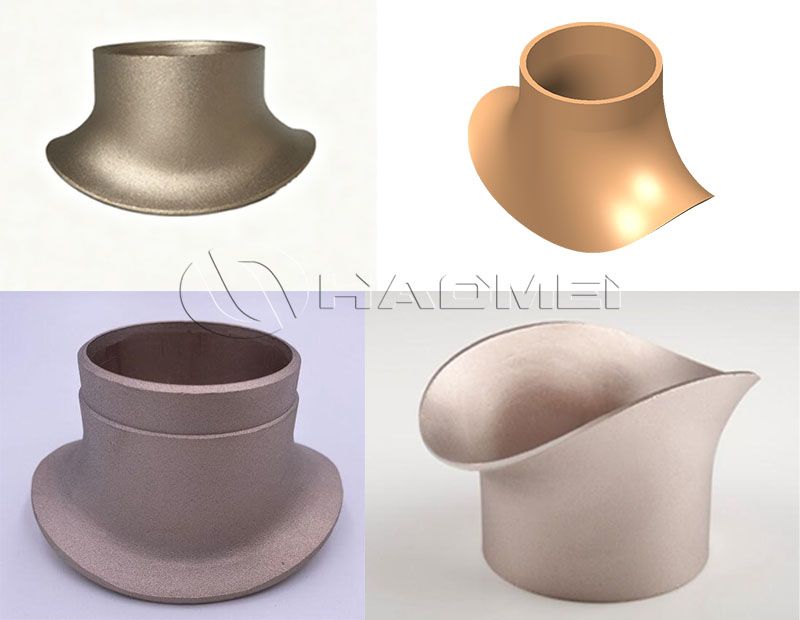

Available Types of Copper Nickel Saddle

Copper Nickel Saddle Material Grades

Standards for Copper Nickel Saddle

Copper nickel saddles are commonly supplied according to customer drawings, project specifications or marine piping requirements. Since saddle fittings are often customized components, dimensions and tolerances are usually confirmed based on the actual main pipe size, branch size and installation design.

Common reference standards and specifications include:

• ASTM copper nickel material specifications

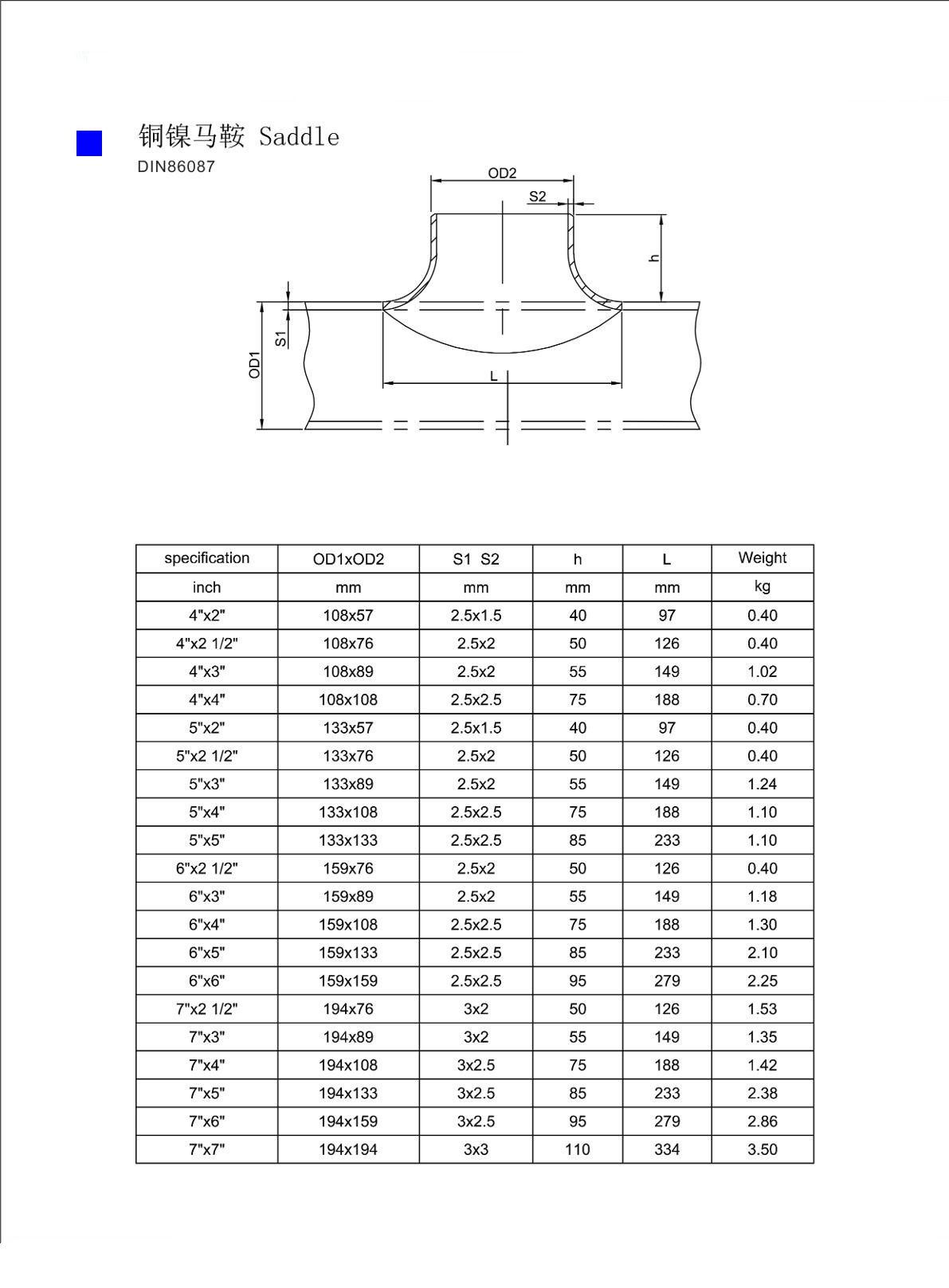

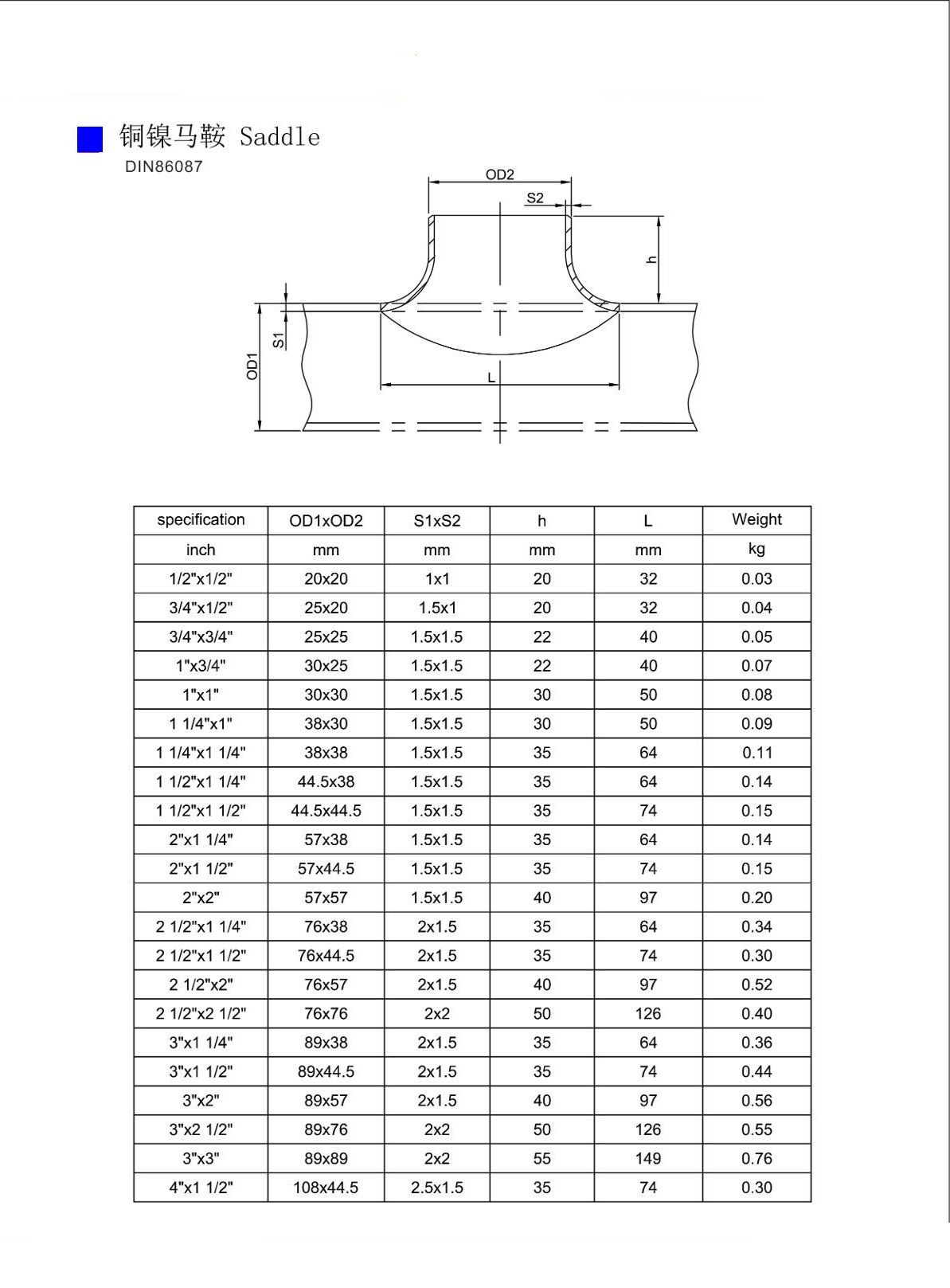

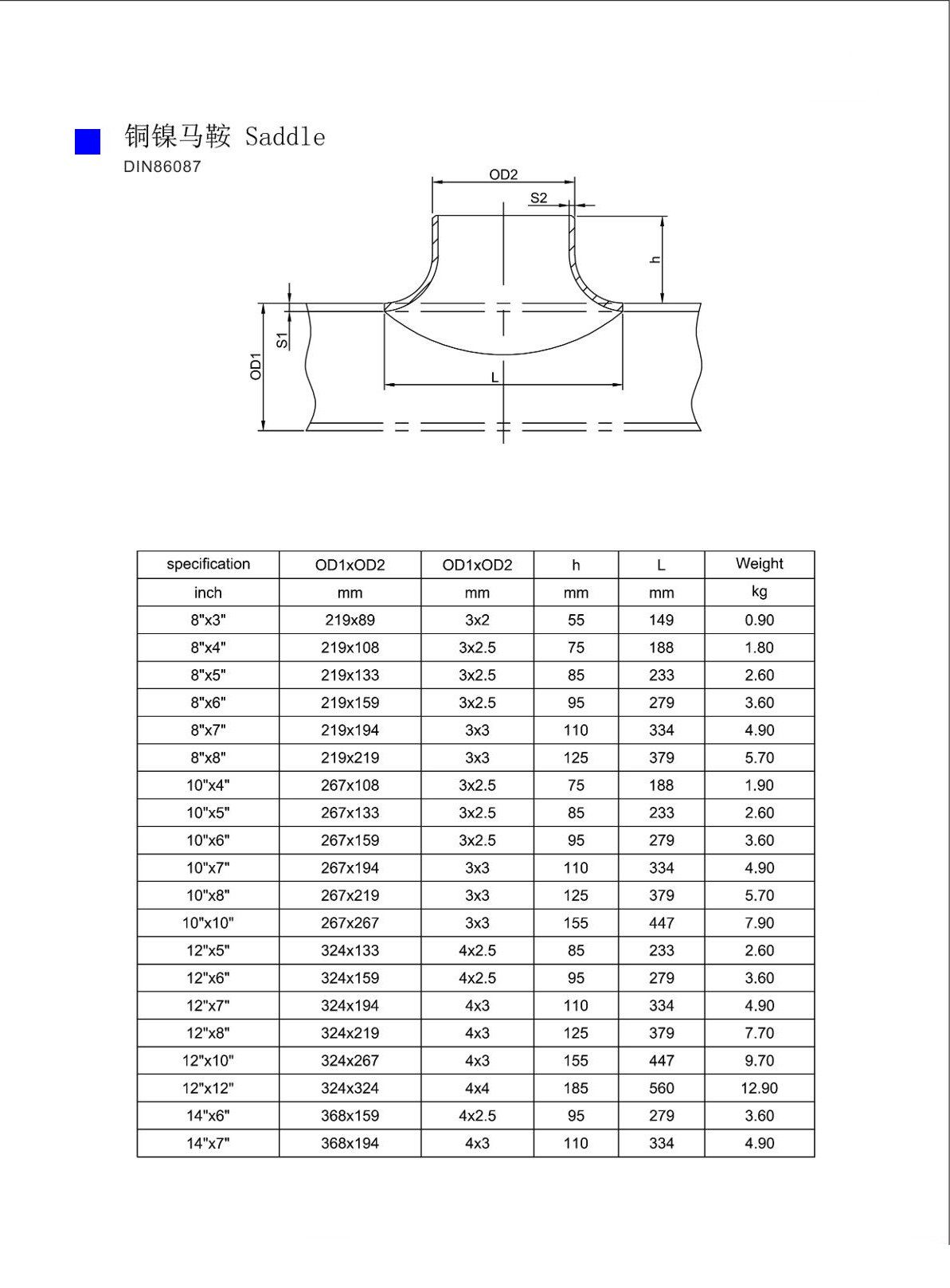

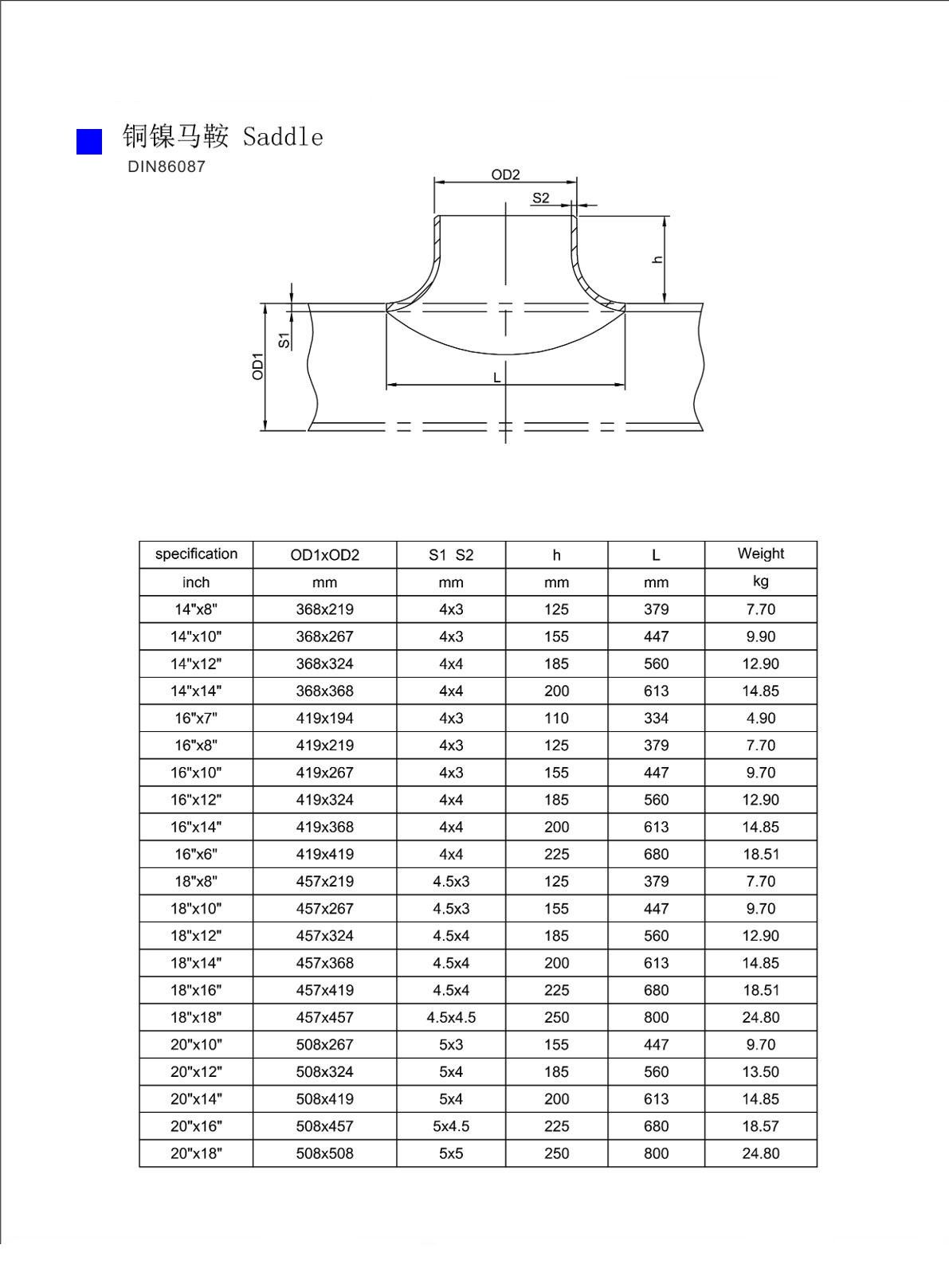

• DIN marine copper nickel piping standards

• EN copper alloy piping standards

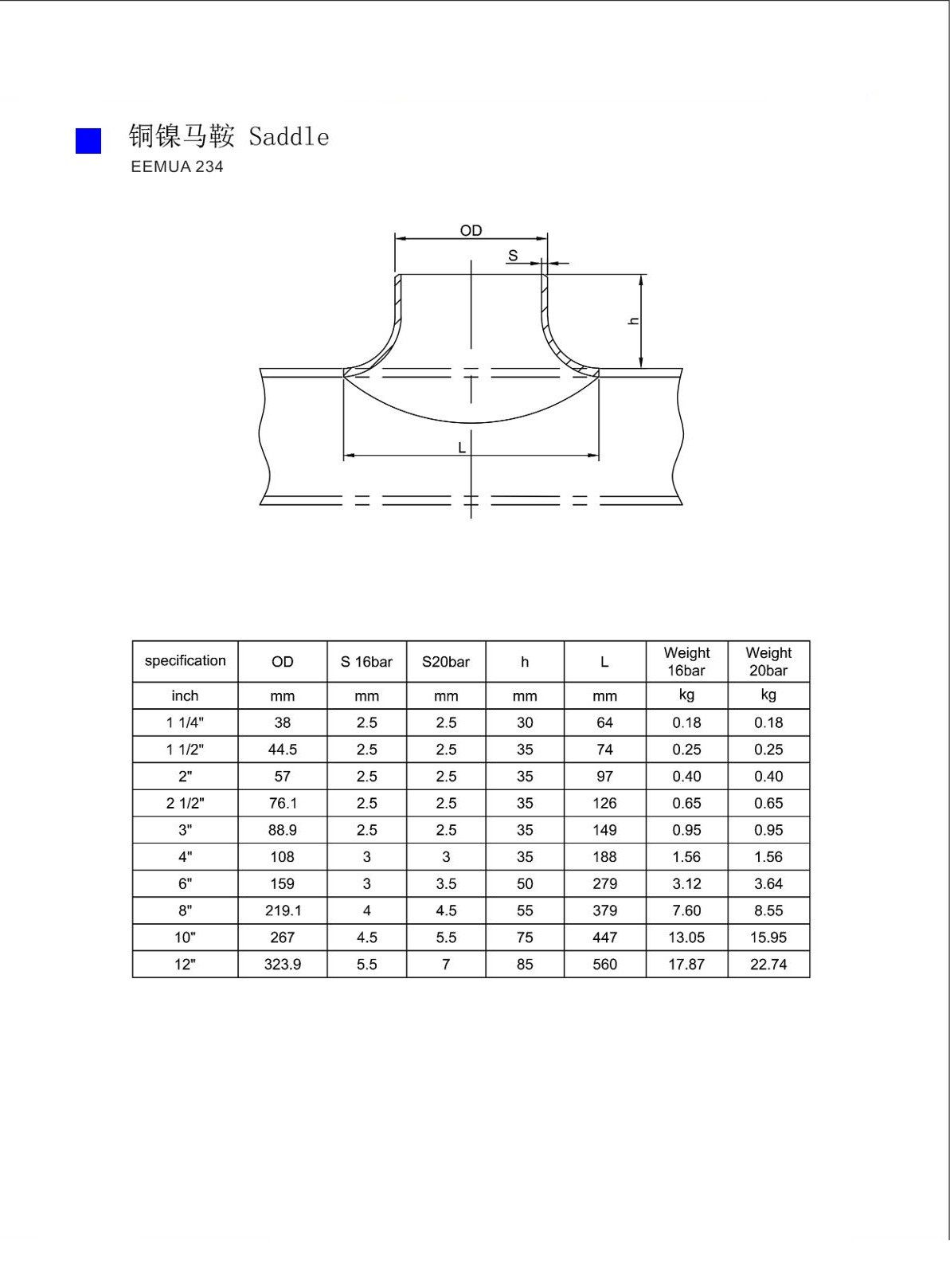

• EEMUA copper nickel piping guidelines

• Marine project specifications

• Shipyard drawings

• Customer drawings and technical requirements

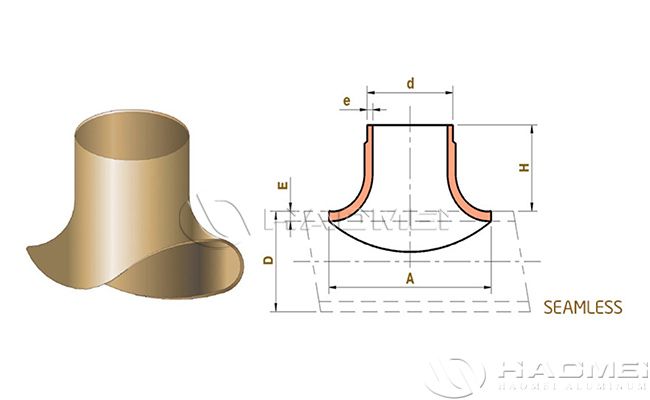

Copper Nickel Saddle Specification

Main Functions of Copper Nickel Saddle

Copper nickel saddles are mainly used for the following purposes:

• Creating branch outlets on copper nickel main pipes

• Providing a saddle-shaped connection surface for branch pipes

• Reinforcing branch openings in piping systems

• Supporting customized pipe spool fabrication

• Replacing standard tee fittings in some special installation conditions

• Assisting pipe repair, replacement or modification work

• Improving installation flexibility in compact marine piping spaces

Copper Nickel Saddle VS Copper Nickel Tee

Copper nickel tees are suitable for standard branch connections, while copper nickel saddles are often used when customized branch positions, reinforcement or pipe modification are required.

90/10 vs 70/30 Copper Nickel Saddle

90/10 copper nickel saddles are commonly used for general marine seawater piping systems. 70/30 copper nickel saddles are recommended for offshore, higher strength or more demanding seawater service conditions.

Matching Copper Nickel Pipe Fittings

We can supply complete copper nickel piping products together with copper nickel saddles, including:

• Copper nickel pipe

• Copper nickel elbow

• Copper nickel tee

• Copper nickel reducer

• Copper nickel cap

• Copper nickel flange

• Copper nickel stub end

• Copper nickel coupling

• Copper nickel union

• Copper nickel pipe spool

• Custom copper nickel fittings

Quality Control and Inspection

To ensure reliable performance in marine and seawater environments, copper nickel saddles can be inspected according to project specifications and applicable standards.

Available inspection items include:

• Chemical composition analysis

• Mechanical property test if required

• Visual inspection

• Dimensional inspection

• Main pipe profile inspection

• Branch size inspection

• Saddle angle inspection

• Wall thickness inspection

• Surface quality inspection

• PMI material verification

• Dye penetrant test if required

• Ultrasonic test if required

• Weld inspection if applicable

• Third-party inspection

• Classification society inspection upon request

• Material test certificate



Packaging of Copper Nickel Saddle

Copper nickel saddles are packed carefully to avoid collision, deformation, scratching and contamination during transportation. Standard export packing includes plastic wrapping, carton boxes, wooden cases, wooden pallets and seaworthy packing.

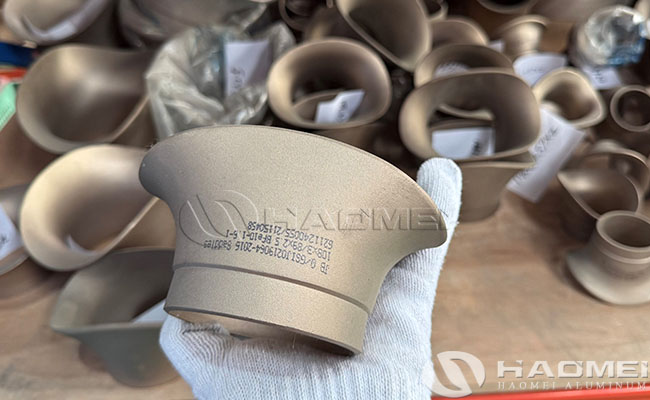

For customized saddle fittings or project orders, each package can be marked according to material grade, main pipe size, branch size, drawing number, heat number, quantity and customer requirements.

Why Choose Us for Copper Nickel Saddle?

• Supply 90/10 and 70/30 copper nickel saddles

• Available materials: C70600, C71500, CuNi10Fe1Mn, CuNi30Mn1Fe

• Pipe saddle, branch saddle, weld saddle and custom saddle available

• Custom fabrication according to drawings is supported

• Suitable for marine, offshore, desalination and seawater piping systems

• Matching copper nickel pipes and fittings can be supplied

• Strict dimensional inspection and material control

• Third-party inspection can be arranged upon request

• Export seaworthy packing for safe delivery

• Technical support for copper nickel piping projects
