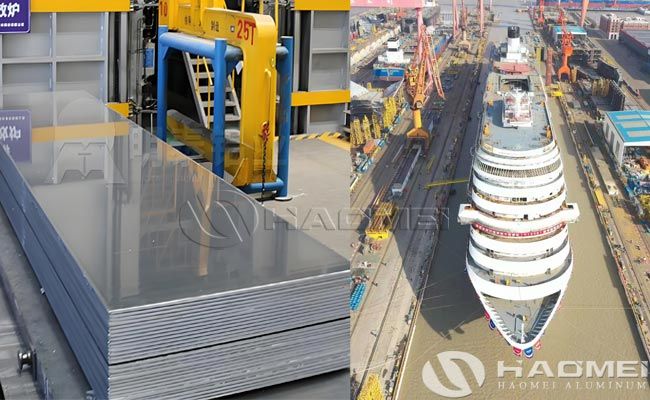

As the export sales representative for marine aluminum at Haomei Aluminum, I have served shipbuilding clients in over 30 countries worldwide, ranging from Southeast Asian fishing vessels to Middle Eastern luxury yachts and large cargo ships in North America. ABS certified marine grade aluminum plates have consistently been one of our most popular products. This type of aluminum, rigorously certified by the American Bureau of Shipping (ABS), is the preferred material in modern shipbuilding due to its superior resistance to seawater corrosion, lightweight advantages, and reliable mechanical properties.

Our ABS certified marine aluminum plates cover a variety of core alloys suitable for different shipbuilding applications, precisely matching the needs of various parts. The core alloys are primarily 5083, 5086, 5454, 5052, and 6061.

- 5083 alloy, considered the "gold standard" in the marine industry, has a magnesium content of 4.0%-4.9%, exhibiting outstanding resistance to seawater corrosion and weld cracking, making it the mainstream choice for global shipbuilders. Previously, we supplied 5083 marine aluminum plates to a Southeast Asian fishing vessel company, successfully adapting them to the decks and hulls of their offshore vessels, extending their service life by more than 5 years compared to ordinary aluminum materials.

- 5086 alloy offers further enhanced strength compared to 5083, making it suitable for applications requiring higher load-bearing capacity, such as superstructures and deck supports.

- 5454 alloy exhibits excellent resistance to stress corrosion cracking and is widely used in liquid tanks and piping.

- 5052 alloy prioritizes lightweight design and is suitable for interior trim and small components.

- 6061 alloy undergoes heat treatment for strengthening and can be used for load-bearing connections such as masts and railings.

Our ABS-certified marine aluminum plates offer a comprehensive range of specifications to match various ship designs:

- Thickness range: 3mm-50mm (commonly 8-30mm), custom thicknesses up to 100mm are available.

- Width range: 1000mm-2650mm (standard 2000mm/2200mm), ultra-wide customization supported.

- Length range: 5000mm-16000mm (standard 6000mm/8000mm), custom cut to size.

- Temperature options: O, H111, H112, H116, H321, etc., with H116 specifically designed for marine environments, offering superior corrosion resistance, while H321 provides higher strength, suitable for heavy-duty decks.

Superior product characteristics are our core competitiveness and a core requirement in shipbuilding.

- Excellent seawater corrosion resistance:

The naturally formed oxide film on the aluminum-magnesium alloy surface is more than 10 times more corrosion-resistant than steel, achieving a service life of over 20 years in high-salt, high-humidity marine environments, significantly reducing maintenance costs. Our products have passed 1000 hours of salt spray testing, with corrosion rates far below industry standards.

- Ultra-lightweight:

With a density of only 2.7g/cm³, one-third that of steel, using our marine aluminum plates can reduce hull weight by 30%-40%, directly increasing the vessel's carrying capacity by 8%-12%, while reducing fuel consumption by 15%-20%. A yacht customer in the Middle East, after adopting our products, saw a 25% increase in range and an 18% reduction in operating costs.

- Excellent weldability and forming properties:

Alloys such as 5083 exhibit excellent crack resistance during welding, allowing for various welding methods such as MIG/TIG. The weld joint strength can reach over 90% of the base material. The material elongation reaches 12%-15%, making it easy to bend, stamp, and cut, shortening the shipbuilding cycle by 10%-15%.

- Reliable mechanical properties:

In the 5083-H116 state, the tensile strength reaches 275-350MPa, and the yield strength is ≥215MPa, capable of withstanding the impact of wind and waves and load changes during ship navigation. Our products have passed the ABS-certified impact toughness test and maintain good performance in low-temperature environments of -40℃, making them suitable for polar vessels.

In shipbuilding, our ABS certified aluminum plates create multiple values for customers:

- Hull structure:

Using 5083 alloy to construct the hull and deck can reduce the number of structural components by 30% while improving the hull's impact resistance. A fishing boat built by a Southeast Asian shipyard using our products showed better resilience than steel fishing boats during typhoons, reducing maintenance costs by 60%.

- Superstructure:

Using 5086/5454 alloy to construct the superstructure lowers the center of gravity, improving ship stability, while reducing weight and increasing speed. North American customers report that using our aluminum plates has increased their ships' top speed by 3 knots.

- Liquid tank systems:

5454 alloy is particularly suitable for manufacturing fuel tanks and freshwater tanks. Its corrosion resistance ensures the liquids are not contaminated, while its lightweight design reduces empty tank weight.

- Special components:

6061 alloy is used to manufacture masts, railings, etc. After heat treatment, its strength rivals that of steel, yet it weighs only 1/3, enhancing the overall aesthetics of the ship.

As a manufacturer with over 20 years of experience exporting marine aluminum, our competitiveness lies in two aspects:

- Full certification guarantee:

In addition to ABS, we are certified by 9 major classification societies including DNV, CCS, and LR, allowing a single purchase to meet the requirements of various classification societies worldwide.

- Customization capabilities:

From fine-tuning of alloy composition and customization of specifications to surface treatment, we can quickly respond to customers' special needs, with a minimum delivery time of only 7 days, 30% faster than the industry average.

From a cost perspective, although the initial purchase price is higher than ordinary steel, considering the fuel savings, lower maintenance costs, and longer service life brought by lightweighting, our ABS certified marine aluminum plates can save more than 30% of the total cost of ownership over the entire life cycle of the vessel. This is why more and more international shipbuilders are choosing to cooperate with Haomei Aluminum long-term.

If you are looking for high-performance marine materials for a new ship project or planning to carry out lightweighting retrofits on existing vessels, please contact us for free samples and technical solutions. Our ABS certified marine grade aluminum plates will provide your vessel with the safest, most reliable, and most economical option.
