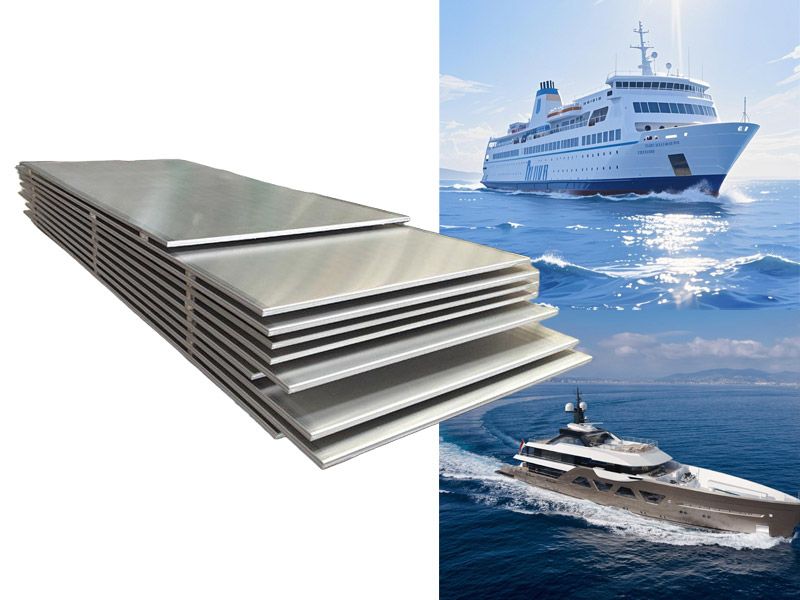

Marine grade aluminum alloy plate 5083, which strictly comply with DNV classification society certification standards, are specifically designed for shipbuilding and marine engineering structures. DNV, as a highly authoritative classification certification body in the global maritime industry, has extremely stringent entry requirements for sheet material composition, mechanical properties, marine corrosion resistance, and internal flaw detection. These standards are core mandatory qualifications for material selection in international ocean-going vessels and offshore engineering projects. Our 5083 marine grade aluminum plates are produced entirely in accordance with DNV's marine material specifications. From raw material proportioning to finished product testing, everything follows DNV standards, making them genuinely DNV-certified marine grade aluminum materials.

In terms of specifications, our factory offers DNV certified marine grade 5083 aluminum plate in thicknesses of 3–80mm, widths of 1200–2600mm, and custom lengths upon request. The mainstream supply tempers are H116 and H321. All sheet metal dimensions and surface flatness strictly adhere to DNV's marine sheet metal dimensional standards; we do not substitute with ordinary industrial aluminum sheets. Material certification documents approved by DNV are available for all specifications. All sheets conform to ASTM B209 and EN 485-2 international standards, with thickness tolerances controlled within ±0.05mm and flatness errors ≤2mm/m. We can customize special sizes and surface treatments according to customer needs to meet various ship structural design requirements.

The core characteristics of marine grade aluminum plate 5083 products fully meet DNV's marine material requirements:

- Corrosion resistance:

A dense alumina film forms on the surface. Immersion in EXCO solution for 168 hours results in a corrosion depth of <0.12mm, exceeding industry standards by 23%. Service life in marine salt spray environments is more than twice that of ordinary aluminum.

- High strength and lightweight:

Tensile strength 305-385MPa, yield strength ≥215MPa, density only 2.66g/cm³, strength-to-weight ratio far exceeding that of steel, providing core support for weight reduction and efficiency improvement in ships.

- Excellent weldability:

Compatible with mainstream welding processes such as MIG/TIG. Stable performance in the heat-affected zone after welding, joint strength retention ≥85%, meeting the welding requirements of ship structures.

- Low temperature toughness:

Maintains good plasticity even in extreme environments down to -40℃, making it particularly suitable for polar vessels and marine engineering equipment applications.

Regarding quality advantages, we strictly control production according to DNV's quality management system. Raw materials, including aluminum ingots and alloy additives, are traceable. Each batch of finished products is sent to a third-party institution for physical and chemical testing, corrosion testing, and ultrasonic flaw detection according to DNV standards, eliminating potential hazards such as inclusions, bubbles, and internal stress deformation. The quality of our products fully meets the acceptance requirements of classification societies. Our production process utilizes a proprietary smelting, homogenous heat treatment, and precision rolling process for marine grade aluminum plate. Process parameters are fully aligned with DNV production specifications. Precise temperature control and stress relief treatment ensure that the plates do not deform after cutting, bending, and processing, meeting the secondary forming processing needs of shipyards.

Our certification advantage is a core highlight: Our 5083 marine-grade aluminum plates hold a formal DNV classification society certification. Each order can be accompanied by a DNV-approved factory inspection report and material certificate, which can be directly used for international shipbuilding project filings, classification society audits, and overseas customs clearance, distinguishing us from ordinary imitation marine-grade aluminum plates on the market that lack formal DNV certification. In addition to DNV, our 5083 marine aluminum plates have been certified by nine major international classification societies, including BV, ABS, LR, and CCS. As a source factory, we offer highly competitive prices through large-scale production and supply chain optimization, which are 5%-10% lower than similar products. We also eliminate middlemen and support tiered pricing for bulk orders, reducing customers' procurement costs.

This certified aluminum sheet is widely used in ocean-going freighters, container ships, luxury yachts, ferries, and offshore drilling platforms. It can be directly selected for any shipbuilding project that requires DNV classification society materials in its tenders, making it a highly adaptable and compliant preferred aluminum material for overseas shipbuilders.

Haomei Aluminum, as a professional manufacturer of marine grade aluminum plates, not only provides high-quality products but also offers technical consultation, processing guidance, and fast delivery services. Choosing our DNV-certified 5083 marine aluminum alloy plates for shipbuilding means choosing the perfect combination of lightweight, high reliability, and cost advantages, safeguarding your shipbuilding projects.
